產品特色
AS410室內無線存取點符合IEEE802.11ac標準，無線傳輸速度可達2.5Gbps，具備MU-MIMO技術，高密度、高性能、高容量的特色，優化使用頻寬及上網速度。
AS410室內無線存取點為終端客戶提供高效能、多人上網、高連接數及高覆蓋範圍的網路環境，特別適用於中小型企業用戶、醫院、購物中心等環境。
超高速資料傳輸
可獨立運作不需要配合無線控制器，或者也能透過無線控制器遠程集中管理，並提供Wi-Fi用戶身份驗證、流量、用戶及頻寬控制和統計數據報告
超高速資料傳輸
無線傳輸速度可達2.5Gbps，提供穩定又高速網路環境
MU-MIMO技術
將數據同時傳輸到多個設備，實現高密度應用
優化使用者體驗
支持Hotspot 2.0，對每個連網設備進行身份驗證，讓使用者能夠順暢安全地漫遊Wi-Fi網路
先進安全認證
支援WPA-PSK/WP2-PSK及802.1x 驗證
| Standards | IEEE 802.11b/g/n IEEE 802.11an/ac |
| Radio Chains | 2.4GHz: 4x4:4 5GHz: 4x4:4 |
| Supported Data Rates | 802.11b: 1, 2, 5.5, 11 Mbps 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: 800Mbps 802.11ac: 1733Mbps |
| Bandwidth | 20 / 40 / 80 MHz |
| Frequency Bands | IEEE 802.11b/g/n US: 2.412GHz – 2.462GHz EU/Japan: 2.412 – 2.472 GHz China/India: 2.412 – 2.472 GHz IEEE 802.11an/ac US: 5.15GHz – 5.35GHz 5.47GHz – 5.85GHz EU: 5.15GHz – 5.35GHz 5.47GHz – 5.725GHz Japan: 5.15GHz – 5.35GHz 5.47GHz – 5.725GHz China: 5.15GHz – 5.35GHz 5.725GHz – 5.85GHz India: 5.15GHz – 5.35GHz 5.725GHz – 5.85GHz 5.85GHz – 5.875GHz |
| Operating Channels | 2.4GHz: US: 1 – 11 EU/Japan/China/India: 1 – 13 5GHz: US: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140, 149, 153, 157, 161, 165 EU: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140 Japan: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144 China: 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165 India: 36, 40, 44, 48, 52, 56, 60, 64, 49, 153, 157, 161, 165, 169, 173 |
| Max. Transmit Power | 2.4GHz: 28dBm 5GHz: 28dBm |
| Receive Sensitivity | 11b: -87dBm 11a/g: ‐91dBm 11n: ‐90dBm 11ac: -90dBm |

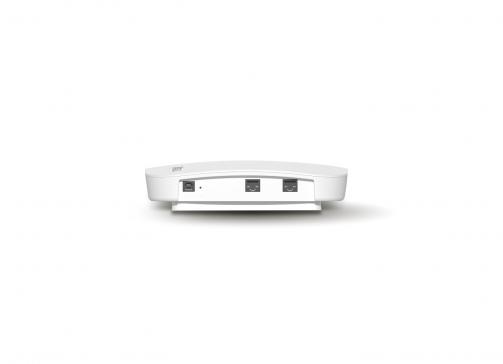

| Interfaces | 2 auto MDX, auto-sensing 10/100/1000 Mbps, RJ45, POE port (on one port) 1 Reset button 1 Console |
| Power Input | 802.3at (PoE+) |
| Power Consumption | < 25.5W |
| Indicator | Power / WLAN / LAN1 / LAN2 |
| Mounting | Ceiling Wall-mount |
| Antenna | 2.4GHz: 4dBi (Embedded) 5GHz: 5dBi (Embedded) |
| Operating | Temperature: -10 – 50 ℃ Humidity: 10 – 90% (non-condensing) |
| Storage | Temperature: -20 – 70 ℃ Humidity: 10 – 90% |
| Dimensions | 216 (L) × 216 (D) × 43 (H) mm |
| Weight | 800g |
| Operating Mode(s) | TAP: Controller-managed mode FAP: Standalone AP mode |
| Access Method | Web User Interface Telnet SSH SNMP |
| Certifications | CE RoHS |
