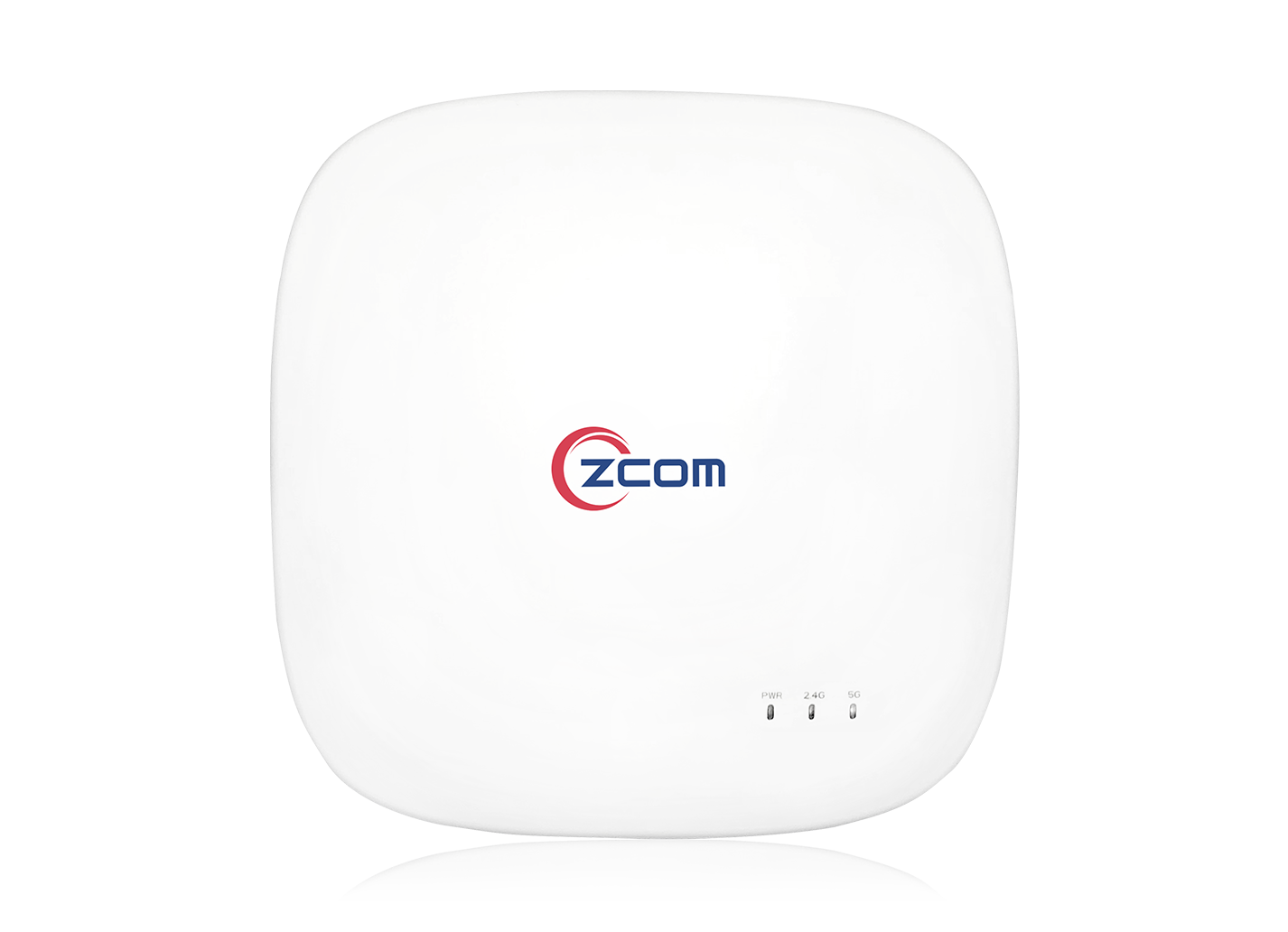

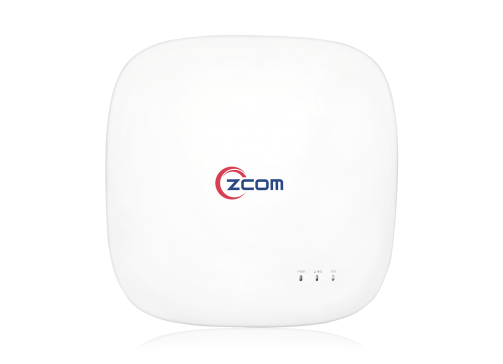

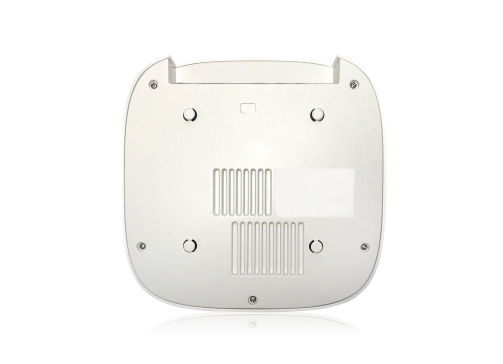

AS250

802.11ax 2x2 Dual-Band

  • Dual-band Wi-Fi 6 (802.11ax), backward compatible with Wi-Fi 5 (802. 11ac)

  • Supports up to 1,200 Mbps in 5GHz and 574 Mbps in 2.4GHz

  • Max transmit power up to 30dBm in 5GHz and 30dBm in 2.4GHz

  • 2 pieces of internal dual-band antennas

  • Target wake time for power-saving of clients & IoT devices

  • Upload and download of MU-MIMO improves transmission to APs and client devices

Description


Z-COM AS250 is high performance Wi-Fi 6 enterprise indoor access point.

AS250 verifies on user capacity up to 1024 Wi-Fi clients, fully comply with IEEE 802.11ax, OFDMA Modulation, MU-MIMO, and BSS Color Spatial Reuse, and provides up to 65% higher total throughput in Wi-Fi 5 environment. The Z-COM AS250 significantly improves network coverage in different corners in an industrial field environment with advanced security. Equipped with a high-performance Qualcomm Chipset, it can serve dual channels 5GHz IEEE 802.11ax and 2.4G 802.11n WLAN radio at the same time.



Wi-Fi 6, The Next Generation






High-density Scenarios Application


Wi-Fi 6 supports MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA), and Basic Service Set (BSS) Color Code to improve the capacity and efficiency for enabling 1024 clients to access the AP and achieves the premium connect experience in different scenarios applications.





Unprecedented Connective Experience


The newest modulation standard, 1024 QAM, with each coding symbol containing more bytes of data than 256 QAM, resulting in a 25% data rate increase and the total throughput up to 6.7Gpbs.


02.Unprecedented Connective Experience.jpg



Optimize Performance


The OFDMA feature allows the AP to assign different parts of the spectrum to different users, improving traffic coordination and rational spectrum usage.





Power Efficiency


The Target Wake-up Time (TWT) features to coordinate transmission times from different sources automatically and devices to sleep during the non-transmission periods and extend the battery life of devices which connects with APs.


04.Power Efficiency.jpg



Advanced Enterprise Security, WPA3


This is another level of security over the older WPA2 technology. By using 192-bit encryption key, more secure encryption of passwords and enhanced protection against brute-force attacks combine to safeguard your Wi-Fi.





Flexible Power Options with PoE


Optimized wired performance with 2.5 G PoE+ Port, the AS250 delivers exceptional performance to support the demand for better Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.




Easy and Flexible Installation


The AS250 provides the necessary parts for installation and features Plug-and-play and configuration free for celling and wall installation.




Centralized Management Optional


AS250 are allowed to configure and manage multiple APs in a centralized choices include zMEC (container-based) or Wireless LAN Controller solutions.
Through Z-COM WLC that includes remote monitor, troubleshooting, and efficiency-optimized and enjoys simple management, configuration and monitoring of all access points.
With zMEC, the platform for edge computing and PaaS, manages virtualized applications and import software by any x86 servers under different applications.





Specification

Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax

Physical Data Rates

802.11ax (2.4GHz) 573.5Mbps
802.11ax (5GHz1) 1200Mbps

Frequency Bands and Operating Channels

Taiwan 2.412 – 2.462 GHz; 11 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.720 GHz ; 12 channels
5.745 – 5.825 GHz; 5 channels
US 2.412 – 2.462 GHz; 11 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.720 GHz ; 12 channels
5.745 – 5.825 GHz; 5 channels
EU 2.412 – 2.472 GHz; 13 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.700 GHz ; 11 channels
China 2.412 – 2.472 GHz; 13 channels
5.180 – 5.320 GHz; 8 channels
5.745 – 5.825 GHz; 5 channels
Japan 2.412 – 2.472 GHz; 13 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.720 GHz; 12 channels
India 2.412 – 2.472 GHz; 13 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.720 GHz ; 12 channels
5.745 – 5.865 GHz; 7 channels
Notice *Operating Channel depends on configured regulatory domain.

Max. Transmit Power (EIRP)

2.4GHz 30dBm
5GHz 1 30dBm
Notice *The maximum power setting will vary by channel and according to individual country regulations.

Antenna Peak Gain

2.4GHz 4dBi
5GHz1 4dBi

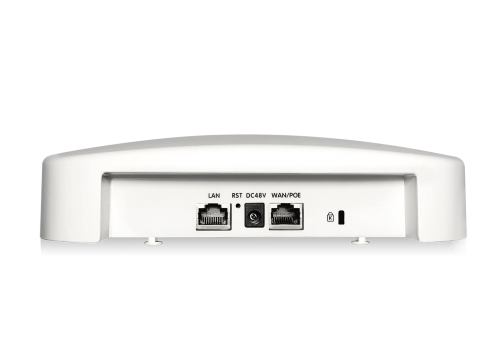

Interface

1 x 10/100/1000M/2.5Gbps WAN Port
1 x 10/100/1000M /2.5Gbps LAN Port
1 x Reset Button

Environmental

Storage Temperature: -40~ 70 ℃
Humidity: 5 ~ 95%
Operating Temperature: -15 ~ 55 ℃
Humidity: 5 ~ 95% (non-condensing)

Power

Power Consumption ≤ 25W
Power Input WAN Port: PoE+ (802.3at)
LAN Port : PoE Out (802.3af)
DC Jack: DC 48 V/1A

Compliance Standards

IEC/EN 62368-1
EN55032 & EN55024
WEEE & RoHS
IEEE standards:
IEEE 802.11a/b/g/n/ac/ax
IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards
Multimedia:
Wi-Fi multimedia (WMM)
Security:
Open System
802.1x
WPA-PSK/WPA-Enterprise
WPA3-PSK
Extensible Authentication Protocol (EAP) types:
EAP-Transport Layer Security (TLS)
EAP-Tunneled TLS (TTLS)
Protected EAP (PEAP)
EAP-Subscriber Identity Module (SIM)
*Above partial functions should be configured by Z-COM Wireless LAN Controllers (WLC)

Radio Chains

2.4GHz 2x2:2
5GHz1 2x2:2

Bandwidth

2.4GHz 20/40 MHz
5GHz1 20/40/80 MHz

Modulation

DSSS (DBPSK, DQPSK, CCK),
OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM)

Receive Sensitivity

Min. -82dBm
2.4GHz HT20: -82dBm/HT40: -79dBm
5GHz VHT20: -82dBm/ VHT40: -79dBm/ VHT80: -79dBm

Supported Wireless LAN Controllers

WS5G2 / WS7G2 /WS10G2 / WS200G2 / WS500G2 / WS1000G2 /zMEC

IP Rating

IP41

Indicator

White (color)
Steady: Connected to the Internet.
Blinking: Can\'t connect to the Internet.

Bluetooth

Version 5.0
Frequency 2400 – 2480MHz
