Indoor Access Points

Home > Products > Indoor Access Points > AS410

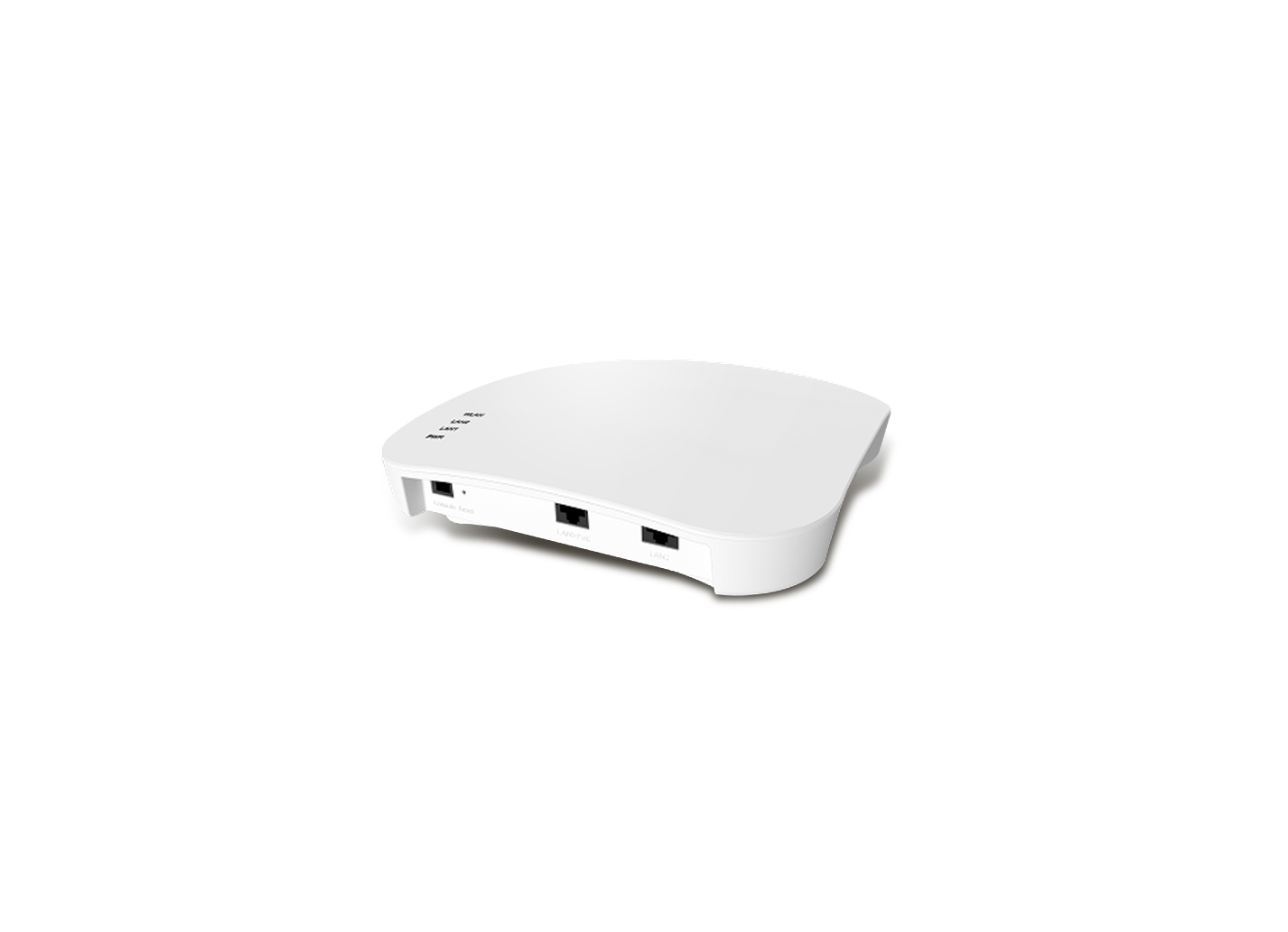

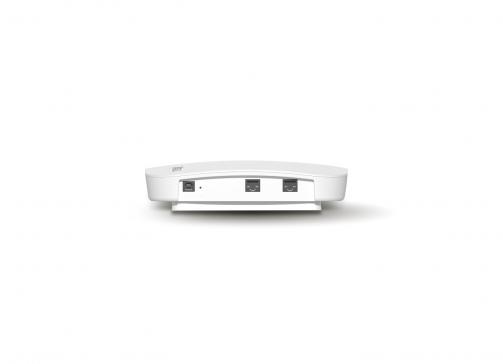

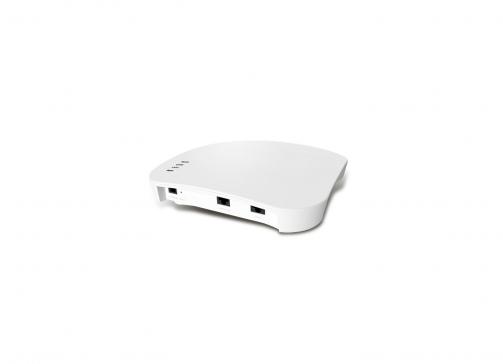

AS410

4X4 Dual Band 802.11ac Wave 2

  • Supports IEEE 802.11ac Wave 2 Standard

  • High-density applications with MU-MIMO technology

  • Ultra fast data rate up to 2533Mbps

  • Passpoint R2 Certification

Description

The AS410 is a high-density, high-performance, and high-capacity wireless access point. With MU-MIMO technology to support four space streams, the highest data rate can be up to 2.5Gbps. The AS410 can be centrally managed by remote Z-COM WLC (Wireless LAN Controller).

Flexible and diverse installation, the AS410 is suitable for any scene in the desktop, ceiling, wall and other installation methods.


Multiple Management Choices

Besides performing as a stand-alone access point, the AS410 can be centrally managed by remote WLC (Wireless LAN Controller) which also provides Wi-Fi user authentication, traffic shaping, user and bandwidth controls, and statistics reporting

Ultra-fast Data Rate

Deliver higher data rates up to 2533Mbps over a greater area with pervasive coverage than any competing access point

MU-MIMO Technology

Simultaneously stream data to multi-devices for high-density applications.

Improved User Experience

Supports Hotspot 2.0 and authenticates every connection, which avoids connecting inconvenience. Enable a more cellular-like user experience while connecting to Wi-Fi networks.

Advanced Security

Support WPA-PSK/WPA2-PSK with 802.1x Authentication.

Specification

WIRELESS

Standards IEEE 802.11b/g/n
IEEE 802.11an/ac
Radio Chains 2.4GHz: 4x4:4
5GHz: 4x4:4
Supported Data Rates 802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 800Mbps
802.11ac: 1733Mbps
Bandwidth 20 / 40 / 80 MHz
Frequency Bands IEEE 802.11b/g/n
US: 2.412GHz – 2.462GHz
EU/Japan: 2.412 – 2.472 GHz
China/India: 2.412 – 2.472 GHz
IEEE 802.11an/ac
US:
5.15GHz – 5.35GHz
5.47GHz – 5.85GHz
EU/Japan:
5.15GHz – 5.35GHz
5.47GHz – 5.725GHz
China:
5.15GHz – 5.35GHz
5.725GHz – 5.85GHz
India:
5.15GHz – 5.35GHz
5.725GHz – 5.85GHz
5.85GHz – 5.875GHz
Operating Channels 2.4GHz:
US: 1 – 11
EU/Japan/China/India: 1 – 13
5GHz:
US: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140, 149, 153,
157, 161, 165
EU/Japan: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140
China: 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165
India: 36, 40, 44, 48, 52, 56, 60, 64, 49, 153, 157, 161, 165, 169, 173
Max. Transmit Power 2.4GHz: 28dBm
5GHz: 28dBm
Min. Receive Sensitivity -103dBm

ANTENNA

Antenna 2.4GHz: 4dBi (Embedded)
5GHz: 5dBi (Embedded)

DIMENSIONS & WEIGHT

Dimensions 216 (L) × 216 (D) × 43 (H) mm
Weight 800g

CERTIFICATIONS

Certifications CE
RoHS

HARDWARE

Interfaces 2 auto MDX, auto-sensing
10/100/1000 Mbps, RJ45,
POE port (on one port)
1 Reset button
1 Console
Power Input 802.3at (PoE+)
Power Consumption < 25.5W
Indicator Power / WLAN / LAN1 / LAN2
Mounting Ceiling
Wall-mount

ENVIRONMENT

Operating Temperature: -10 – 50 ℃
Humidity: 10 – 90%
(non-condensing)
Storage Temperature: -20 – 70 ℃
Humidity: 10 – 90%

MANAGEMENT

Operating Mode(s) TAP: Controller-managed mode
FAP: Standalone AP mode
Access Method Web User Interface
Telnet
SSH
SNMP
