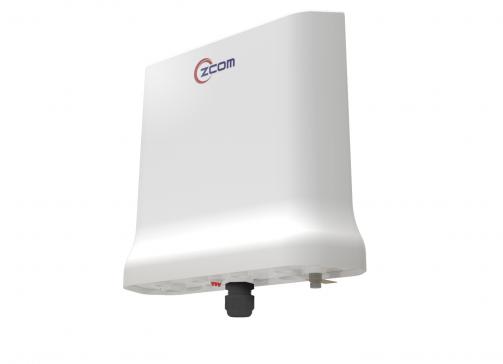

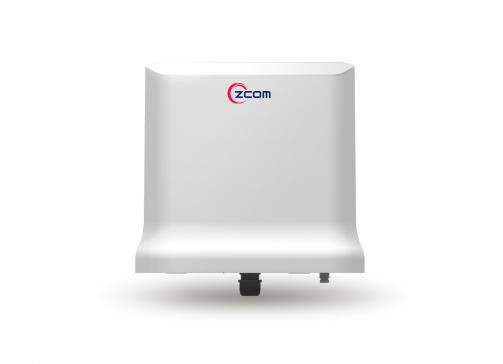

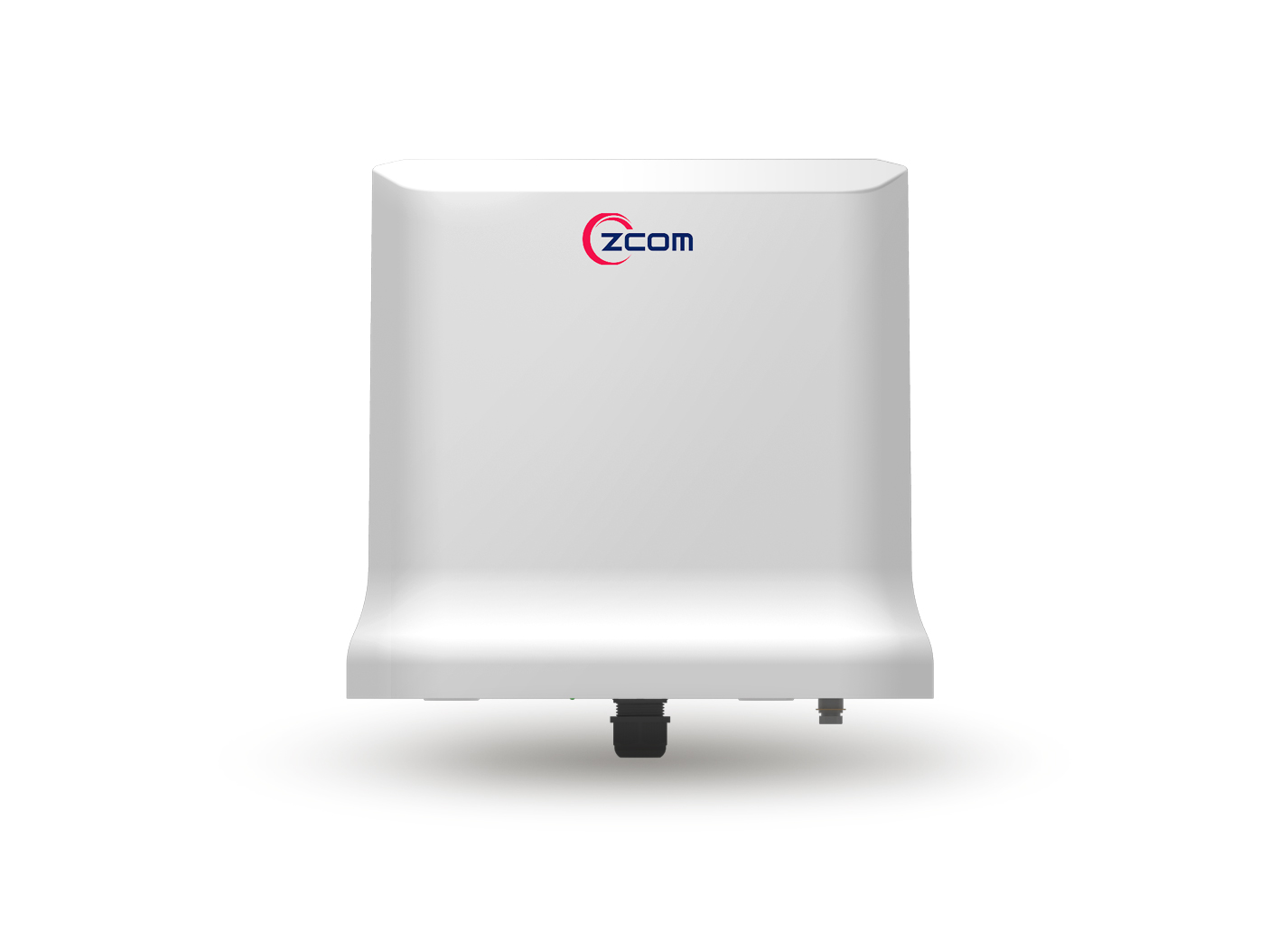

SP420 Series

4X4 Dual Band 802.11ac Wave 2

  • Supports IEEE 802.11ac Wave 2 standard

  • High-density applications with MU-MIMO technology

  • Data rate up to 2333Mbps

  • Provides PoE Out (SP420)

  • Built-in fiber connector (SP420-F)

  • Includes BLE (Bluetooth Low Energy) location service

  • Supports Mesh coverage

  • IP67 Rating+14 class wind force resistance

  • Salt spray test

Description

The SP420 series high integrated, outdoor 802.11ac Wave 2 wireless access point delivers exceptional performance. It supports a wireless transmission rate up to 2333 Mbps and can accommodate up to 512 wireless client device connections.


With an IP67 rated and lightning protected design, the SP420 series can operate in harsh weather conditions. The SP420 is equipped with a PoE out capability that enables cost-effective deployment to smart surveillance applications, and the SP420-F equipped with a SFP port that can be used to support fiber connectons.


The added benefit of the Mesh and Bluetooth location services greatly improves promotion, cost, and management efficiency.


Compared to similar products in the market, the SP420 series has the strongest competitiveness and is ideal for Wi-Fi deployment in high-density areas such as campuses, parks, and tourist attractions.




MU-MIMO Technology

Simultaneously transmit data to multi-devices forhigh-density applications.


PoE Out (SP420)

Supports an external device like an IP camera or a VoIP product for fast deployment and easy installation.


Location Service

Leverages BLE technology to provide location services capability that is easy to engage with LBS or IoT applications.


Mesh Coverage

Accelerates the connection speed between devices, providing users with quick installation and easy deployment

capabilities.


Robust Product Design

Encased with IP67-rated and scale-level 14 windproof robust design that can withstand harsh environments.


Fiber Port (SP420-F)

Adopts fiber cable for farther deployment and cost-effective applications


 Series Products:






Features

SP420

SP420-F

HW

Function

Max. PHY Rate

2.4GHz: 600Mbps

5GHz: 1733Mbps

2.4GHz: 600Mbps

5GHz: 1733Mbps

Max. Output Power

2.4GHz: 31dBm w/ 4 ant.

5GHz: 31dBm w/ 4 ant.

2.4GHz: 31dBm w/ 4 ant.

5GHz: 31dBm w/ 4 ant.

Antenna

Antenna Type

2.4/5GHz: Omni antenna

2.4/5GHz: Omni antenna

Antenna Gain

2.4GHz: 5dBi (Embedded)

5GHz: 5dBi (Embedded)

2.4GHz: 5dBi (Embedded)

5GHz: 5dBi (Embedded)

Features

PoE Out

Yes

No

BLE (Bluetooth)

Yes

Yes

IP Rating

IP67

Dimension L x D x H (mm)

290 x 287 x 90

290 x 287 x 90


Specification

Standards

IEEE 802.11a/b/g/n/ac

Supported Data Rates

802.11b: 11Mbps
802.11a/g: 54Mbps
802.11n: 600Mbps
802.11ac: 1733Mbps

Frequency Bands

2.4GHz US: 2.412 – 2.462GHz
EU: 2.412 – 2.472GHz
Japan: 2.412 – 2.472GHz
China: 2.412 – 2.472GHz
India: 2.412 – 2.472GHz
5GHz US:
5.15GHz – 5.35GHz
5.47GHz – 5.85GHz
EU:
5.15GHz – 5.35GHz
5.47GHz – 5.725GHz
Japan:
5.15GHz – 5.35GHz
5.47GHz – 5.725GHz
China:
5.15GHz – 5.35GHz
5.725GHz – 5.85GHz
India:
5.15GHz – 5.35GHz
5.725GHz – 5.85GHz
5.85GHz – 5.875GHz

Max. Transmit Power

2.4GHz SP420: 31dBm w/ 4 ant.

SP420-F: 31dBm w/ 4 ant.
5GHz SP420: 31dBm w/ 4 ant.

SP420-F: 31dBm w/ 4 ant.
Notice *The maximum power setting will vary by channel and according to individual country regulations.

Antenna Peak Gain

SP420 2.4 GHz: 5dBi (Embedded)
5GHz: 5dBi (Embedded)
SP420-F 2.4 GHz: 5dBi (Embedded)
5GHz: 5dBi (Embedded)

Environmental

Storage Temperature: -40 – 80 ℃
Humidity: 10 – 90%
Operating Temperature: -40 – 70 ℃
Humidity: 10 – 90% (non-condensing)

Bluetooth

Version 4.1
Frequency 2400 – 2480MHz
Antenna 1.5dBi (Embedded)

Power

Power Consumption < 15W
Power Input DC 48V, 0.5A PoE

Physical Characteristics

Dimensions 296 (L) × 92 (W) × 283 (H) mm
Weight 2Kg

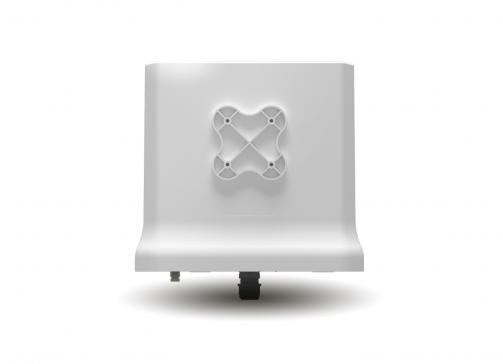

Mounting Type Pole mount

Radio Chains

2.4GHz 4x4:4
5GHz 4x4:4

Bandwidth

20 / 40 / 80 / 80+80 MHz

Operating Channels

2.4GHz US: 1 – 11
EU: 1 – 13
Japan: 1 – 13
China: 1 – 13
India: 1 – 13
5GHz US:
36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140, 149, 153, 157, 161, 165
EU:
36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140
Japan:
36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140
China:
36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165
India:
36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165, 169, 173

Min. Receive Sensitivity

-100dBm

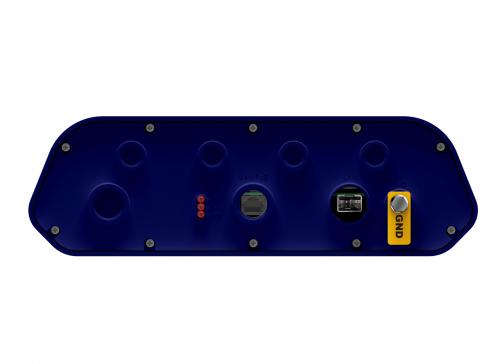

Interfaces

SP420 2 × 10/100/1000 BASE-T
1 WAN for 802.3at PoE,
1 LAN for PoE Out (Max 11.5Watt, 45+/78-)
1 × Power Jack
SP420-F 1 × 10/100/1000 BASE-T
1 × 1GbE SFP
1 × Ground terminal

Indicator

Power / System / WLAN / WAN

IP Rating

IP67

Supported Wireless LAN Controllers

WS5G2 / WS7G2 /WS10G2 / WS200G2 / WS500G2 / WS1000G2

Compliance Standards

IEC/EN 60950
EN55032 & EN55024
WEEE & RoHS
Radio approvals:
EN 300 328, EN301 893 (Europe)
EMI and susceptibility (Class B)
EN 301 489-1 and -17 (Europe)
IEEE standards:
IEEE 802.11a/b/g/n/ac
IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards
Multimedia:
Wi-Fi multimedia (WMM)
Security:
Open System
802.1x
WPA-PSK/WPA2-PSK
WPA-Enterprise/WPA2-Enterprise
Extensible Authentication Protocol (EAP) types:
EAP-Transport Layer Security (TLS)
EAP-Tunneled TLS (TTLS)
Protected EAP (PEAP)
EAP-Subscriber Identity Module (SIM)
*Above partial functions should be configured by Z-COM Wireless LAN Controllers (WLC)
