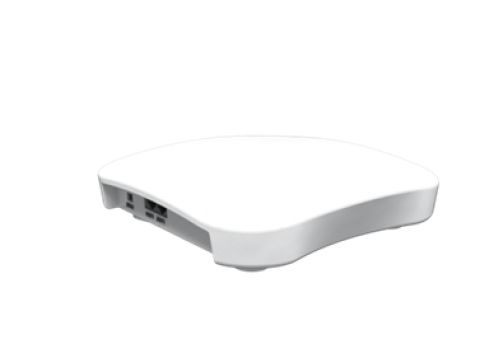

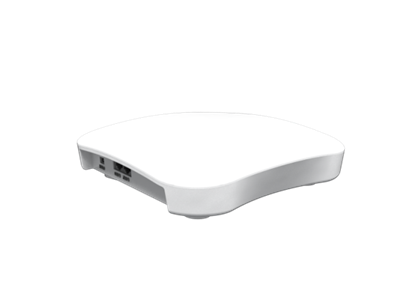

AS310

802.11ac 3X3 Dual-Band

Supports IEEE 802.11ac Standard
26.5 dBm high power
Ultra fast data rate up to 1600Mbps
CE/FCC/NCC Certification

Description

With optimized performance, functionality and reliability, AS310 sets the new standard for enterprise wireless technology to help ensure a high speed, and the best possible end-user experience on the wireless network. It supports a wireless transmission rate up to 1600 Mbps.

Performing as a stand-alone access point, AS310 can be centrally managed by Controllers for large installations.

	Central Management The AS310 can be centrally managed by remote Z-COM WLC (Wireless LAN Controller).
	Simplified power supply PoE output support powering other devices without external power supply.
	Flexible Deployment Mode Allows not only traditional AP also in mesh networks. All deployment modes are easy to set up and configure.
	Advanced Security Support WPA-PSK/WPA2-PSK with 802.1x Authentication.

Specification

Standards

802.11ac

Supported Data Rates

- 802.11a: 6/9/12/18/24/36/48/54 Mbps
- 802.11b: 1/2/5.5/11 Mbps
- 802.11g: 6/9/12/18/24/36/48/54 Mbps
- 802.11n: 300Mbps
- 802.11ac: 1300Mbps

Frequency Bands and Operating Channels

Taiwan	2.412 – 2.462 GHz; 11 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz ; 12 channels 5.745 – 5.825 GHz; 5 channels
US	2.412 – 2.462 GHz; 11 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz ; 12 channels 5.745 – 5.825 GHz; 5 channels
EU	2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.700 GHz ; 11 channels
China	2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.745 – 5.825 GHz; 5 channels
Japan	2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz; 12 channels
India	5.15GHz – 5.35GHz 5.725GHz – 5.85GHz 5.85GHz – 5.875GHz
Notice	*Operating Channel depends on configured regulatory domain.

Receive Sensitivity

11b: ‐89dBm / 11a/g: ‐92dBm / 11n: ‐92dBm / 11ac: -90dBm

Interfaces

2 IEEE 802.3u MDI/MDIX 10/100 Base-T Ethernet
2 * 10/100/1000 BASE-T RJ-45 Ethernet connector
1 Reset button
1 Power Jack (option)

Power

Power Consumption	≤ 13W
Power Input	802.3at (PoE+)

Physical Characteristics

Dimensions	215.83 (L) × 215.85 (D) × 43 (H) mm
Weight	800g
Mounting type	Ceiling/Wall mount

Operating Mode(s)

TAP: Controller-managed mode
FAP: Standalone AP mode

Certifications

CE
FCC
NCC

Radio Chains

2.4GHz	2x2:2
5GHz	3x3:3

Bandwidth

20 / 40 / 80 MHz

Max. Transmit Power

2.4GHz	19dBm
5GHz	26.5dBm
Notice	*The maximum power setting will vary by channel and according to individual country regulations.

Antenna

2.4GHz	5dBi (Internal)
5GHz	5dBi (Internal)

Indicator

Power / System / WLAN / WAN

IP Rating

IP43

Environmental

Storage	Temperature: -10 – 60 ℃ Humidity: 10 – 90%
Operating	Temperature: 0 – 55 ℃ Humidity: 10– 90% (non-condensing)

Access Method

Web User Interface
Telnet
SSH
SNMP
