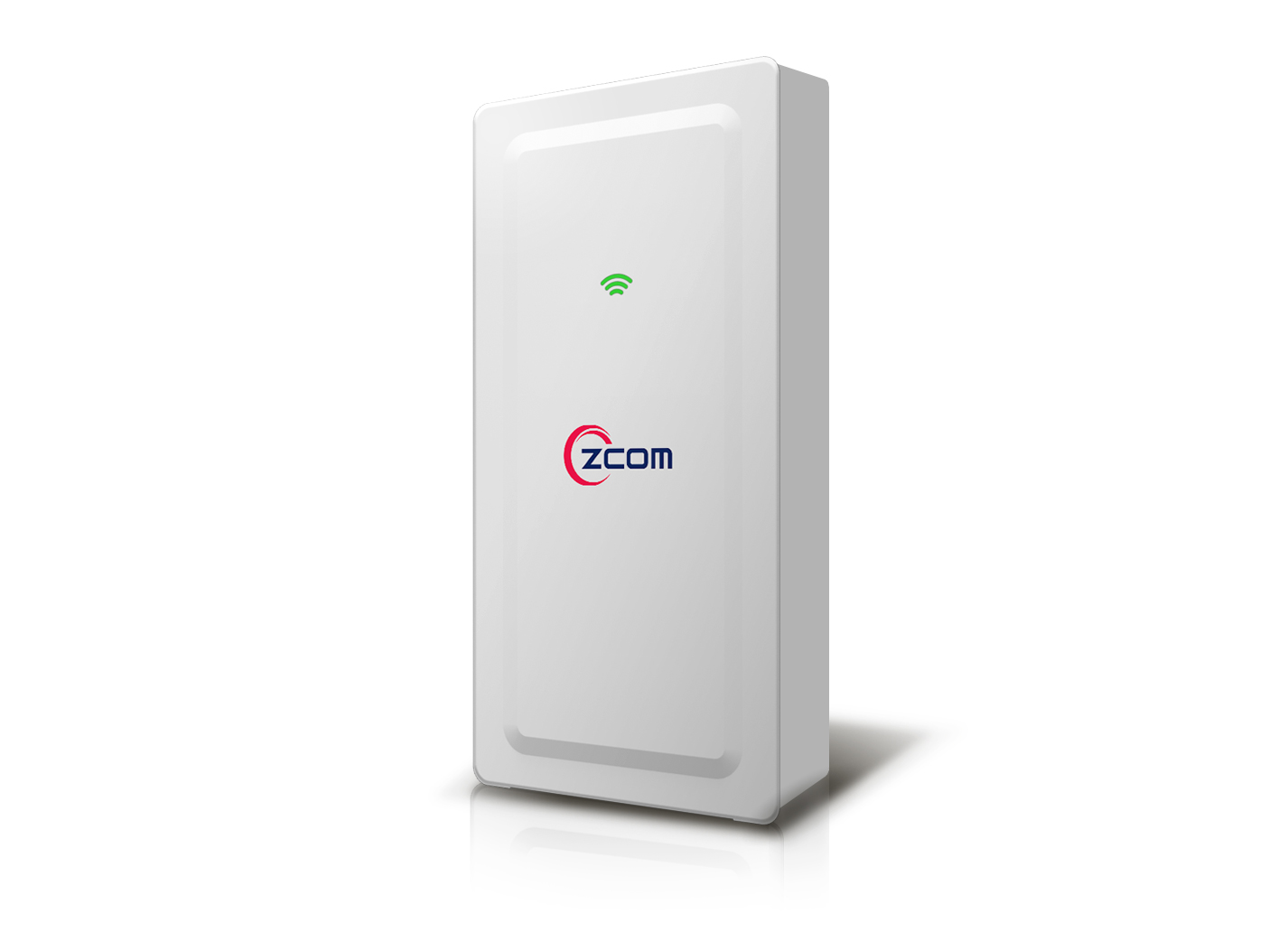

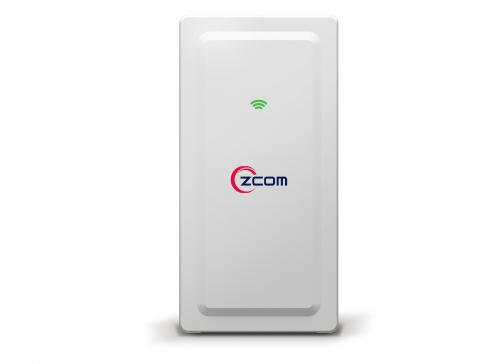

AS420

802.11ac Wave 2 4x4 Dual-Band

  • Supports IEEE 802.11ac Wave 2 Standard

  • High-density applications with MU-MIMO technology

  • Data rate up to 2333Mbps

  • Provides PoE Out

  • Includes BLE (Bluetooth Low Energy) location service

  • Supports Mesh coverage

  • Flexible Installation

Description

The AS420 highly integrated, indoor 802.11ac Wave 2 wireless access point delivers exceptional performance. It supports a wireless transmission rate up to 2333 Mbps and can accommodate up to 512 wireless client devices connections simultaneously.

The AS420 is equipped with a PoE out capability that enables cost-effective deployment to Smart Surveillance applications. The added benefit of the Mesh coverage and Bluetooth location services greatly improves promotion, cost, and management efficiency.

Compared to similar products in the market, the AS420 has the strongest competitiveness and is the ideal choice for Wi-Fi deployment in small-medium businesses, hotels, hospitals, and shopping malls.





MU-MIMO Technology

Simultaneously stream data to multiple devices for high-density applications.


PoE Out

Supports an external device like an IP camera or a VoIP product for fast deployment and easy installation.


Location Service

Leverages BLE technology to provide location services capability that is easy to engage with LBS or IoT applications.


Mesh Coverage

Accelerates the connection speed between devices, providing users with quick installation and easy deployment

capabilities.


Flexible Installation

Flexible installation design enables the AP to seamlessly blend into the indoor decoration.


Specification

Standards

IEEE 802.11a/b/g/n/ac

Bandwidth

20 / 40 / 80 / 80+80 MHz

Frequency Bands and Operating Channels

Taiwan 2.412 – 2.472GHz
5.15GHz – 5.35GHz
5.47GHz – 5.85GHz
US 2.412 – 2.472GHz
5.15GHz – 5.35GHz
5.47GHz – 5.85GHz
EU 2.412 – 2.472GHz
5.15GHz – 5.35GHz
5.47GHz – 5.725GHz
China 2.412 – 2.472GHz
5.15GHz – 5.35GHz
5.47GHz – 5.725GHz
Japan 2.412 – 2.472GHz
5.15GHz – 5.35GHz
5.47GHz – 5.725GHz
India 2.412 – 2.472GHz
5.15GHz – 5.35GHz
5.725GHz – 5.85GHz
5.85GHz – 5.875GHz

Max. Transmit Power

2.4GHz 29dBm w/ 4 ant.
5GHz 29.3dBm w/ 4 ant.
Notice *The maximum power setting will vary by channel and according to individual country regulations.

Min. Receive Sensitivity

-100dBm

Supported Wireless LAN Controllers

WS5G2 / WS7G2 /WS10G2 / WS200G2 / WS500G2 / WS1000G2

Physical Characteristics

Dimensions 96 (L) × 29.9 (W) × 192 (H) mm
Weight 500g

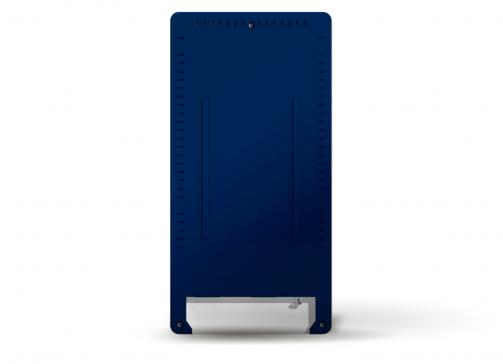

Mounting Type In-wall / Wall-mount / Ceiling

Environmental

Storage Temperature: -20 – 70 ℃
Humidity: 10 – 90%
Operating Temperature: -10 – 50 ℃
Humidity: 10 – 90% (non-condensing)

Package Contents

802.11ac Wave 2 4 x 4 Dual Band Indoor Access Points. Mounting bracket included. Does not include power adapter.

Radio Chains

2.4GHz 4x4:4
5GHz 4x4:4

Supported Data Rates

802.11b: 11Mbps
802.11a/g: 54Mbps
802.11n: 600Mbps
802.11ac: 1733Mbps

Antenna Peak Gain

2.4GHz 3dBi (Embedded)
5GHz 3.3dBi (Embedded)

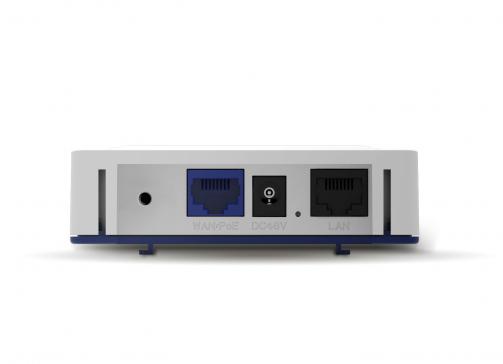

Interfaces

2 × 10/100/1000 BASE-T: 1 WAN for 802.3at PoE, 1 LAN for PoE Out (Max 10Watt, 45+/78-)
1 × Reset button
1 × Power Jack

Indicator

Power / System / WLAN / WAN

Power

Power Consumption < 15W
Power Input DC 48V, 0.5A PoE, or DC Jack (optional accessory)

Bluetooth

Version 4.1
Frequency 2400 – 2480MHz
Antenna 1.5dBi (Embedded)

Compliance Standards

IEC/EN 60950
EN55032 & EN55024
WEEE & RoHS
Radio approvals:
EN 300 328, EN301 893 (Europe)
EN 301 489-1 and -17 (Europe)
SRRC (China)
IEEE standards:
IEEE 802.11a/b/g/n/ac
IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards
Multimedia:
Wi-Fi multimedia (WMM)
Security:
Open System
802.1x
WPA-PSK/WPA2-PSK
WPA-Enterprise/WPA2-Enterprise
Extensible Authentication Protocol (EAP) types:
EAP-Transport Layer Security (TLS)
EAP-Tunneled TLS (TTLS)
Protected EAP (PEAP)
EAP-Subscriber Identity Module (SIM)
*Above partial functions should be configured by Z-COM Wireless LAN Controllers (WLC)

Optional Accessories

AS-CLM4 Ceiling mount + two screws
AS-LK18 Anti-tamper Lock
AS-48052-XX 48V 0.52A power adapter
SP-48063-XX 48V PoE Injector + power cord
Notice *When ordering power adaptors, you must specify the destination region by indicating -US, -EU instead of -XX.
