SP230-S5
802.11ac Wave 2 2X2 Dual-Band(PtP/PtMP)
· Supports IEEE 802.11ac Wave 2 standard
· Awarded as Taiwan Excellence Awards 2023
· RoHS Compliant、REACH、WEEE
· EIRP 38dBm outdoor high power
· Built in high-gain embedded antennas for PtP deployment
· Data rate up to 1167Mbps
· Provides PoE Out
· IP67 rating+14 class wind force resistance
Description
The SP230-S5 802.11ac Wave 2 2x2 dual band outdoor access point provides a data rate of up to 1.1Gbps. Built in high transmit power for superior Wi-Fi coverage.
SP230-S5 as an outdoor wireless AP can operate in point to point, bridge & coverage modes. Based on 802.11ac Wave 2 technology, throughput is up to 1,167Mbps. With built-in high gain antennas & ERIP 38dBm, its coverage can be 400 meters & transmit over 6KM for video streaming at PTP mode.
It extends transmission for longer distance with reliability. It features low power consumption (<12W) & equipped with a PoE out capability that not only enables cost-effective deployment to applications such as surveillance but also solves the problem of labor shortage for equipment maintenance, speeding up network penetration.
Moreover, MU-MIMO technology maximizes throughput for high-density applications. With robust design of wide operating temperature, surge protection, IP67 rating, wind level 14 certificated & passed salt spray test, it can withstand harsh environments. The shape with 23.7-degree slope can prevent rain/snow accumulation. These feature SP230-S5 especially suitable for rural area.
 | 38dBm High Power Maximum transmit power can be up to 38dBm, bringing superior Wi-Fi signal coverage with a diameter of up to 400 meters. |
 | PoE Out Powers a device such as an IP camera or a VoIP product for fast deployment. |
 | Location Service Integrated Bluetooth Low Energy (BLE) 4.1 radio to enable location tracking and wayfinding. |
 | Flexible installation Provides various working mode which can be applied flexibly in different scenarios. |
 | PtP Data Transmission Long distance data transmission up to 6km, suitable for rural areas. |
 | Robust Product Design Encased with IP67-rated and scale-level 14 windproof robust design that can withstand harsh environments. |

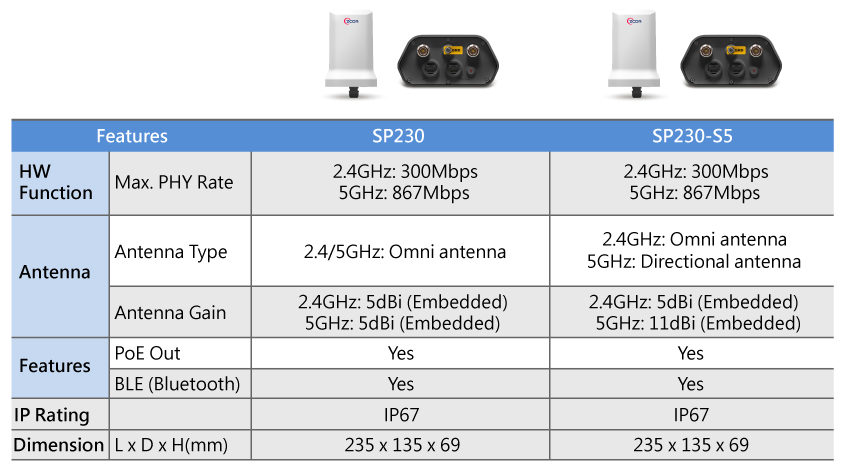

Series Proucts:
Specification
| IEEE 802.11a/b/g/n/ac |
| 2.4GHz: 5dBi (Embedded) 5GHz: 11dBi (Embedded) |
| 802.11b: 11 Mbps / 802.11a/g: 54 Mbps 802.11n: 300Mbps / 802.11ac: 867Mbps |
| Taiwan | 2.412 – 2.462 GHz; 11 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz ; 12 channels 5.745 – 5.825 GHz; 5 channels |
| US | 2.412 – 2.462 GHz; 11 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz ; 12 channels 5.745 – 5.825 GHz; 5 channels |
| EU | 2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.700 GHz ; 11 channels |
| China | 2.412 – 2.472 GHz; 13 channels 5.745 – 5.825 GHz; 5 channels |
| Japan | 2.412 – 2.472 GHz; 13 channels 5.500 – 5.720 GHz; 12 channels |
| India | 2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz ; 12 channels 5.745 – 5.865 GHz; 7 channels |
| Notice | *Operating Channel depends on configured regulatory domain. |
| Max. | 2.4GHz: 35dBm w/ 2 ant. 5GHz: 38dBm w/ 2 ant. |
| Notice | *The maximum power setting will vary by channel and according to individual country regulations. |
| Power / System / WLAN / WAN |
| IP67 |
| Dimensions | 151 (L) × 75.5 (W) × 235 (H) mm |
| Weight | 1kg |
| Mounting type | Pole mount |
| Version | 4.1 |
| Frequency | 2400 – 2480MHz |
| Antenna | 1.5dBi (Embedded) |
| IEC/EN 60950 EN55032 & EN55024 WEEE & RoHS Radio approvals: EN 300 328, EN301 893 (Europe) EN 301 489-1 and -17 (Europe) FCC NCC SRRC (China) IEEE standards: IEEE 802.11a/b/g/n/ac IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards Multimedia: Wi-Fi multimedia (WMM) Security: Open System 802.1x WPA-PSK/WPA2-PSK WPA-Enterprise/WPA2-Enterprise Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) Protected EAP (PEAP) EAP-Subscriber Identity Module (SIM) *Above partial functions should be configured by Z-COM Wireless LAN Controllers (WLC) |
| 2.4GHz: 2x2:2 5GHz: 2x2:2 |
| 2.4GHz: Omni antenna 5GHz: Directional antenna |
| 20 / 40 / 80 MHz |
| Min. | -99dBm |
| 2.4GHz | HT20: -90dBm/HT40: -86dBm |
| 5GHz | VHT20: -93dBm/ VHT40: -90dBm/ VHT80: -86dBm |
| 2 × 10/100/1000 BASE-T 1 WAN port support 802.3at PoE 1 LAN port support PoE Out (Max 10Watt, 45+/78-) 2 x 1GbE RJ45 port 1 × Ground terminal |
| WS5G2 / WS7G2 /WS10G2 |
| Power Consumption | < 12W |
| Power Input | DC 48V, 0.5A PoE |
| Storage | Temperature: -40 ~ 80 ℃ Humidity: 10 ~ 90% |
| Operating | Temperature: -40 ~ 70 ℃ Humidity: 10 ~ 90% (non-condensing) |
| 802.11ac Wave 2 2 x 2 Dual Band PtP/PtMP Outdoor Access Points. Mounting bracket included. Does not include power adapter. |
| SP-CBM5 | Anti-theft steel rope + allen wrench + four screws |
| SP-MKM5 | Two-dimensional mounting kit |
| SP-WP-CM20 | SP-WP-CM20 |
| SP-48063-XX | 48V PoE Injector + power cord |
| Notice | *When ordering power adaptors, you must specify the destination region by indicating -US, -EU instead of -XX. |
