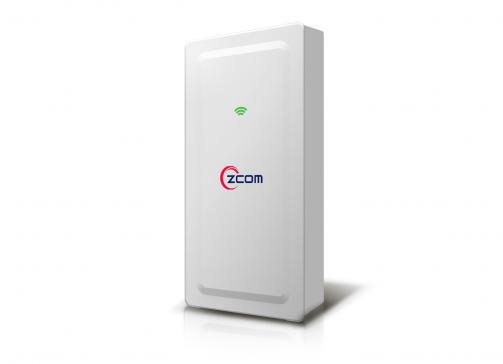

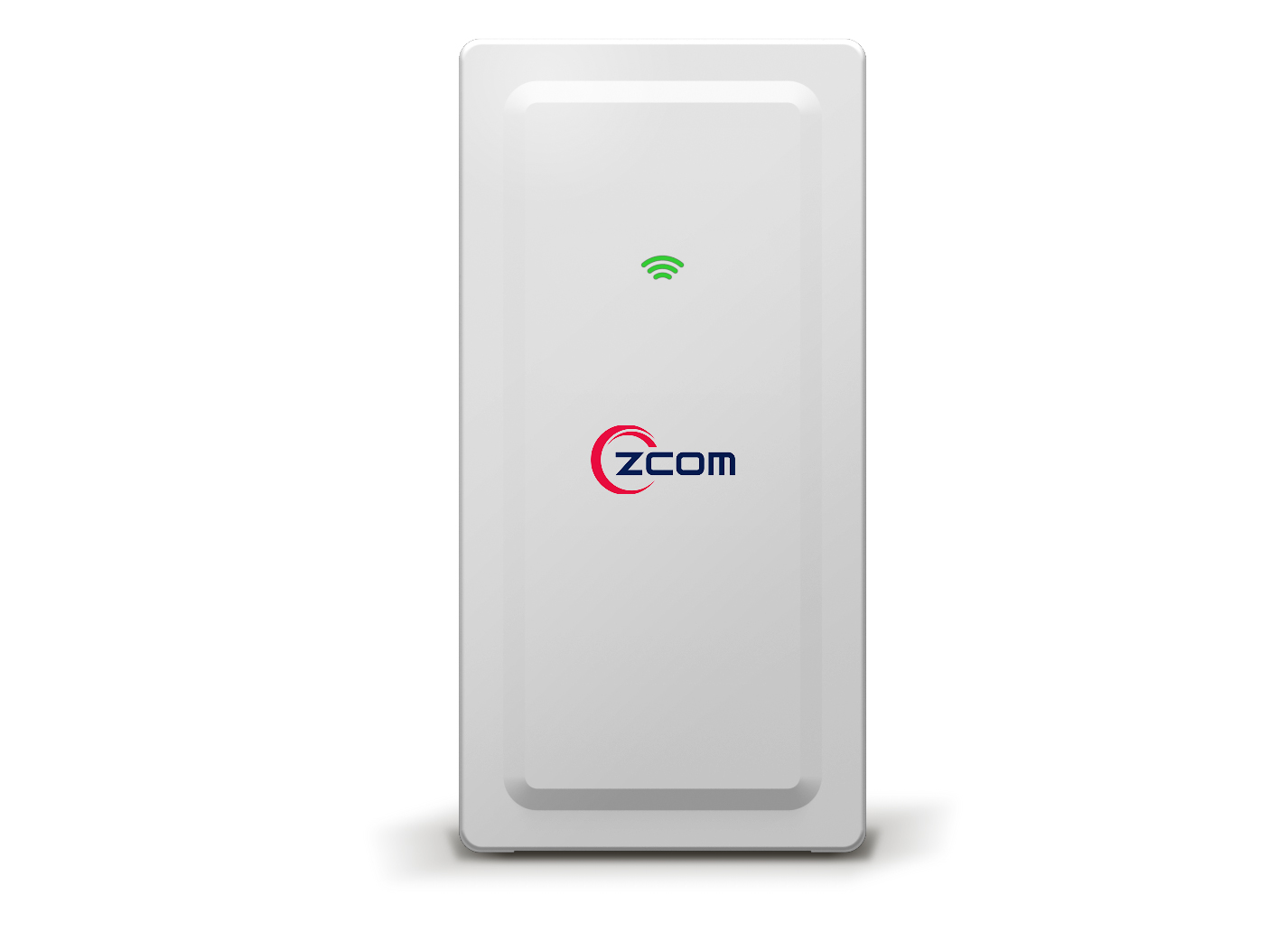

AS220V2

802.11ac Wave 2 2x2 Dual-Band

  • Supports IEEE 802.11ac Wave 2 Standard

  • MU-MIMO technology

  • 30dBm high power

  • Data rate up to 1167Mbps

  • Provides PoE Out

  • Includes BLE (Bluetooth Low Energy) location service

  • Supports Mesh Coverage

  • Flexible installation

Description

The AS220V2 high integrated, indoor 802.11ac Wave 2 wireless access point delivers exceptional performance. It supports a wireless transmission rate up to 1167 Mbps and can accommodate up to 512 wireless client devices connections.


The AS220V2 is equipped with a PoE out capability that enables cost-effective deployment to Smart Surveillance applications. The added benefit of the Mesh coverage and Bluetooth location services greatly improves promotion, cost, and management efficiency.


Compared to similar products in the market, the AS220V2 has the strongest competitiveness and is the ideal choice for Wi-Fi deployment in small-medium businesses, hotels, hospitals, and shopping malls.


Wi-Fi signal coverage

30dBm High Power

Maximum transmit power can be up to 30dBm, bringing superior Wi-Fi signal coverage.


MU-MIMO Technology

Simultaneously stream data to multiple devices for high-density applications.

PoE Out easy installation

PoE Out

Supports an external device like an IP camera or a VoIP product for fast deployment and easy installation.

 provide location services capability

Location Service

Leverages BLE technology to provide location services capability that is easy to engage with LBS or IoT applications.

 speed between devices

Mesh Coverage

Accelerates the connection speed between devices, providing users with quick installation and easy deployment .

Flexible installation design enables the AP

Flexible Installation

Flexible installation design enables the AP to seamlessly blend into the indoor decoration.



Specification

Standards

IEEE 802.11a/b/g/n/ac

Bandwidth

20 / 40 / 80 MHz

Frequency Bands and Operating Channels

Taiwan 2.412 – 2.462 GHz; 11 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.720 GHz ; 12 channels
5.745 – 5.825 GHz; 5 channels
US 2.412 – 2.462 GHz; 11 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.720 GHz ; 12 channels
5.745 – 5.825 GHz; 5 channels
EU 2.412 – 2.472 GHz; 13 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.700 GHz ; 11 channels
China 2.412 – 2.472 GHz; 13 channels
5.180 – 5.320 GHz; 8 channels
5.745 – 5.825 GHz; 5 channels
Japan 2.412 – 2.472 GHz; 13 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.720 GHz; 12 channels
India 2.412 – 2.472 GHz; 13 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.720 GHz ; 12 channels
5.745 – 5.865 GHz; 7 channels

Max. Transmit Power

2.4GHz 33dBm w/ 2 ant.
5GHz 30.3dBm w/ 2 ant.
Notice *The maximum power setting will vary by channel and according to individual country regulations.

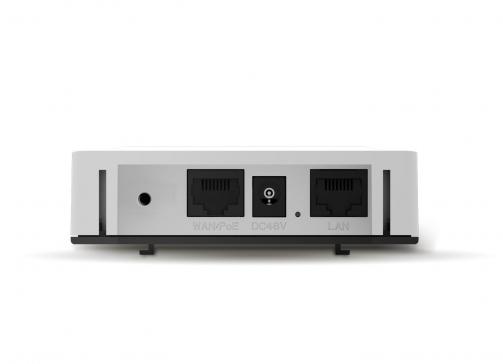

Interfaces

2 × 10/100/1000 BASE-T: 1 WAN for 802.3at PoE, 1 LAN for PoE Out (Max 10Watt, 45+/78-)
1 × Reset button
1 × Power Jack

Supported Wireless LAN Controllers

WS5G2 / WS7G2 /WS10G2 / WS200G2 / WS500G2 / WS1000G2

Physical Characteristics

Dimensions 96 (L) × 29.9 (W) × 192 (H) mm
Weight 500g
Mounting Type In-wall / Wall-mount / Ceiling

Bluetooth

Version 4.1
Frequency 2400 – 2480MHz
Antenna 1.5dBi (Embedded)

Package Contents

802.11ac Wave 2 2 x 2 Dual Band Indoor Access Points. Mounting bracket included. Does not include power adapter.

Package Contents

802.11ac Wave 2 2 x 2 Dual Band Indoor Access Points. Mounting bracket included. Does not include power adapter.

Radio Chains

2.4GHz 2x2:2
5GHz 2x2:2

Supported Data Rates

802.11b: 11 Mbps
802.11a/g: 54 Mbps
802.11n: 300Mbps
802.11ac: 867Mbps

Antenna Peak Gain

2.4GHz 3dBi (Embedded)
5GHz 3.3dBi (Embedded)

Min. Receive Sensitivity

-99dBm

Indicator

Power / System / WLAN / WAN

Power

Power Consumption < 12W
Power Input DC 48V, 0.5A 802.3at PoE or DC Jack (optional accessory)

Environmental

Storage Temperature: -20 – 70 ℃
Humidity: 10 – 90%
Operating Temperature: -10 – 50 ℃
Humidity: 10 – 90% (non-condensing)

Compliance Standards

IEC/EN 60950
EN55032 & EN55024
WEEE & RoHS
Radio approvals:
EN 300 328, EN301 893 (Europe)
EN 301 489-1 and -17 (Europe)
SRRC (China)
IEEE standards:
IEEE 802.11a/b/g/n/ac
IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards
Multimedia:
Wi-Fi multimedia (WMM)
Security:
Open System
802.1x
WPA-PSK/WPA2-PSK
WPA-Enterprise/WPA2-Enterprise
Extensible Authentication Protocol (EAP) types:
EAP-Transport Layer Security (TLS)
EAP-Tunneled TLS (TTLS)
Protected EAP (PEAP)
EAP-Subscriber Identity Module (SIM)
*Above partial functions should be configured by Z-COM Wireless LAN Controllers (WLC)

Optional Accessories

AS-CLM4 Ceiling mount + two screws
AS-LK18 Anti-tamper Lock
AS-48052-XX 48V 0.52A power adapter
SP-48063-XX 48V PoE Injector + power cord

Optional Accessories

AS-CLM4 Ceiling mount + two screws
AS-LK18 Anti-tamper Lock
AS-48052-XX 48V 0.52A power adapter
SP-48063-XX 48V PoE Injector + power cord
Notice *When ordering power adaptors, you must specify the destination region by indicating -US, -EU instead of -XX.
