ZAC-1023-5

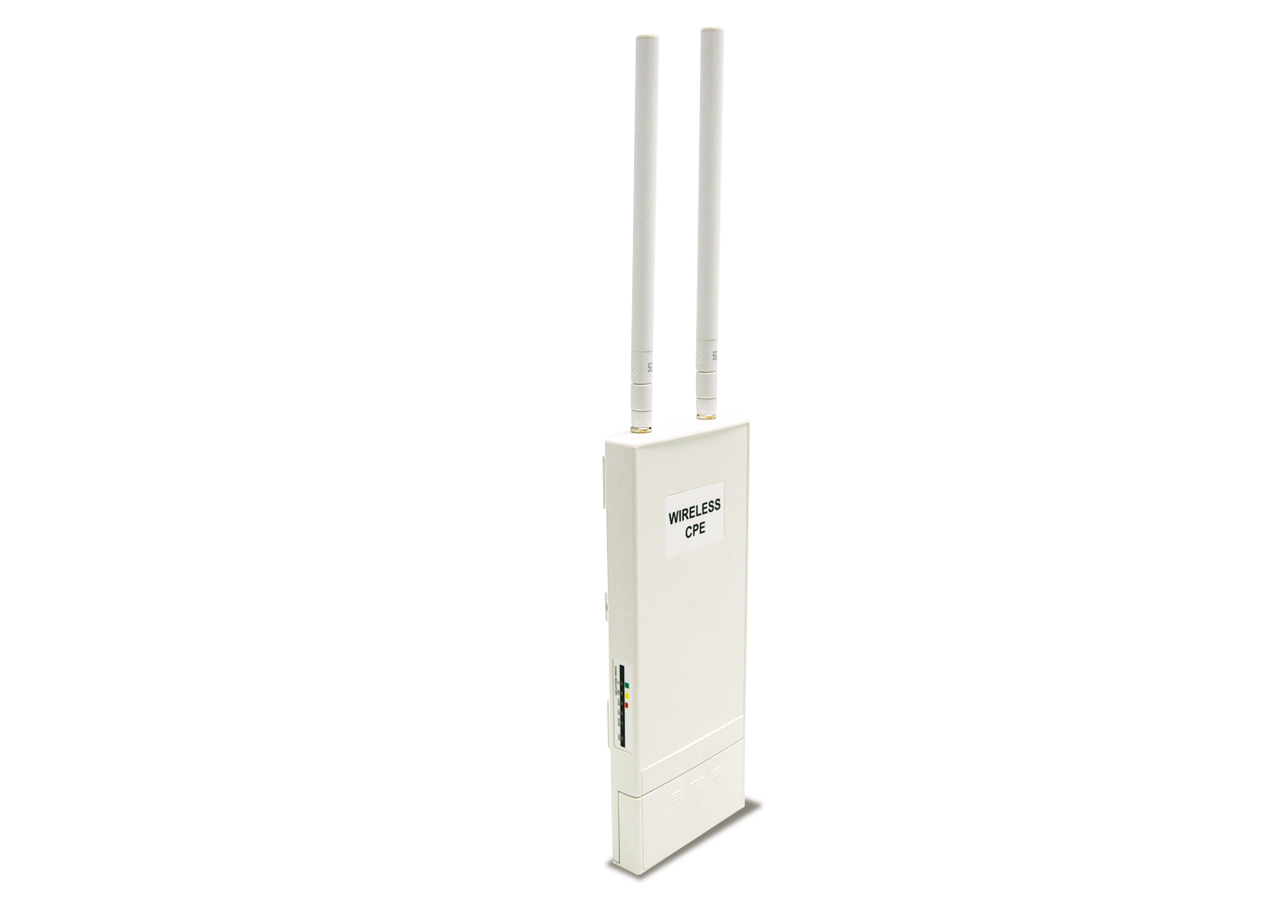

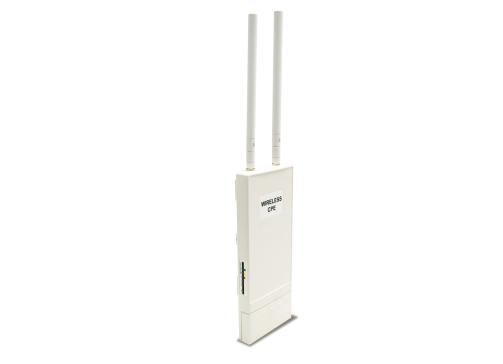

802.11an 2x2 PtMP/Bridge Outdoor AP

Supports IEEE 802.11an standard
IP55 rating
Built in 5dBi internal antenna for PtP/PtMP deployment
Maximum data rate up to 300Mbps

Description

ZAC-1023-5 is a product compliant with the IEEE 802.11n standard to support higher bandwidth for wireless internet service.

ZAC-1023-5 supports 5GHz access point/CPE features with outstanding throughput performance and a cost-effective design that allows for reliable equipment at affordable prices.

It features an embedded 5 dBi external antenna with extensive wireless coverage, supports a data rate of up to 300 Mbps.

Advanced Security

Supports WPA-PSK/WPA2-PSK with IEEE 802.1x authentication

Easy installation and Flexible deployment

Quick installation in minutes and easy to move into any area

Remote Monitoring

Transmits the product status to Z-COM wireless LAN controller, which mitigates the IT staff's management effort

Specification

Standards

IEEE 802.11an

Supported Data Rates

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11an: 300Mbps

Frequency Bands and Operating Channels

Taiwan	5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz ; 12 channels 5.745 – 5.825 GHz; 5 channels
US	5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz ; 12 channels 5.745 – 5.825 GHz; 5 channels
EU	5.180 – 5.320 GHz; 8 channels 5.500 – 5.700 GHz ; 11 channels
China	5.745 – 5.825 GHz; 5 channels
Japan	5.745 – 5.825 GHz; 5 channels
India	5.500 – 5.720 GHz; 12 channels
Notice	*Operating Channel depends on configured regulatory domain.

Receive Sensitivity

Min.	‐89dBm(Min.)
5GHz	11a : ‐89dBm / 11n: ‐83dBm

Interfaces

5GHz: 5dBi (Embedded)

Supported Wireless LAN Controllers

WS5G2 / WS7G2 /WS10G2 / WS200G2 / WS500G2 / WS1000G2

IP Rating

IP55

Environmental

Storage	Temperature: -40 - 70 ℃ Humidity: 10 - 95%
Operating	Temperature: -20 - 70 ℃ Humidity: 10 - 95% (non-condensing)

Package Contents

ZAC-1023-5

802.11n 2 x 2 PtP/PtMP Outdoor Access Point. Mounting bracket and power adapter included.

Radio Chains

5GHz: 2x2:2

Bandwidth

20 / 40 MHz

Max. Transmit Power

5GHz	32dBm
Notice	*The maximum power setting will vary by channel and according to individual country regulations.

Antenna Peak Gain

5GHz: 5dBi (Embedded)

Indicator

Power / WLAN / LAN / Signal

Power

Power Consumption	12W
Power Input	802.3af (PoE)

Physical Characteristics

Dimensions	111 (L) × 257 (W) × 48 (H) mm
Weight	500g
Mounting type	Pole mount

Compliance Standards

IEC/EN 60950-1
EN55032 & EN55024
EN62311
WEEE & RoHS
FCC Part 15 sub B/C/E Class A
NCC
Radio approvals:
EN 300 328, EN301 893 (Europe)
EN 301 489-1 and -17 (Europe)
IEEE standards:
IEEE 802.11n
IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards
Multimedia:
Wi-Fi multimedia (WMM)
Security:
Open System
802.1x
WPA-PSK/WPA2-PSK
WPA-Enterprise/WPA2-Enterprise
Extensible Authentication Protocol (EAP) types:
EAP-Transport Layer Security (TLS)
EAP-Tunneled TLS (TTLS)
Protected EAP (PEAP)
EAP-Subscriber Identity Module (SIM)
*Above partial functions should be configured by Z-COM Wireless LAN Controllers (WLC)
