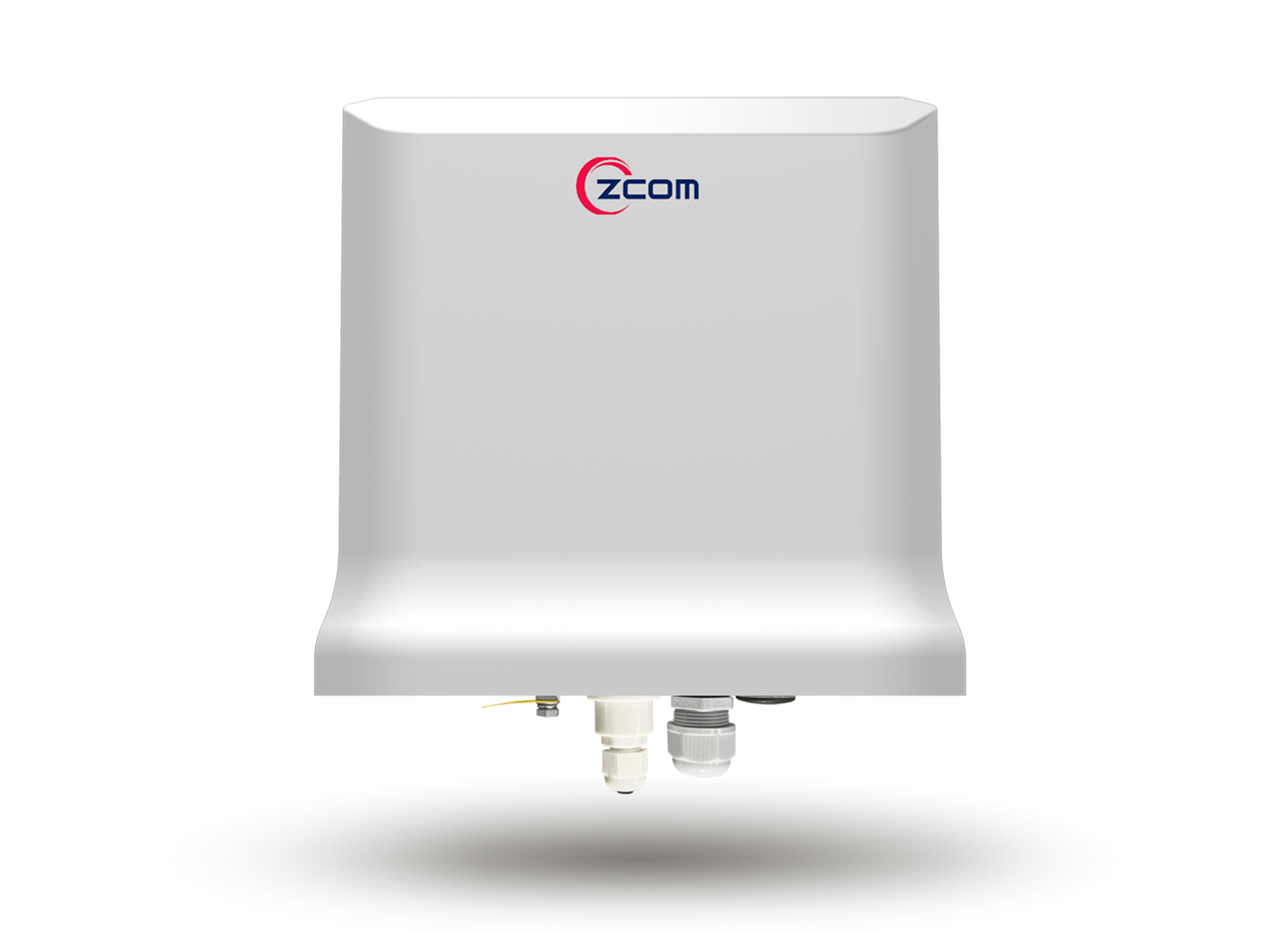

SP250

Wi-Fi 6(802.11 ax) 2x2 Dual Band Outdoor Access Point

  • Dual-band Wi-Fi 6 (802.11ax), backward compatible with Wi-Fi 5 (802. 11ac)

  • Supports up to 1,200 Mbps in 5GHz and 574 Mbps in 2.4GHz

  • Max transmit power up to 31dBm in 5GHz and 31dBm in 2.4GHz

  • IP67-Rated weatherproof & dustproof exterior withstands harsh environments

  • Target wake time for power-saving of clients & IoT devices

  • Upload and download of MU-MIMO improves transmission to APs and client devices

Description

Z-COM SP250 is high performance Wi-Fi 6 outdoor access point for high-density environment like warehouse, shopping center, airport and other outdoor locations.

SP250 verifies on user capacity up to 1024 Wi-Fi clients and provide dual-band with up to 1.774Gbps data rates, built-in coverage antenna, which fully comply with IEEE 802.11ax, OFDMA Modulation, MU-MIMO, and BSS Color Spatial Reuse, and provides up to 65% higher total throughput in Wi-Fi 5 environment. Equipped with a high-performance  Qualcomm Chipset, the Z-COM SP250 features the latest in rugged weatherproofing and Wi-Fi 6 technology with guaranteed performance and reliability in the harshest environments.

outdoor WIFI


Wi-Fi 6, The Next Generation


wifi6_out-en. outdoor access point




High-density Scenarios Application


Wi-Fi 6 supports MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA), and Basic Service Set (BSS) Color Code to improve the capacity and efficiency for enabling 1024 clients to access the AP and achieves the premium connect experience in different scenarios applications.


Frequency Division Multiple Access (OFDMA)



Unprecedented Connective Experience


The newest modulation standard, 1024 QAM, with each coding symbol containing more bytes of data than 256 QAM, resulting in a 25% data rate increase and the total throughput up to 6.7Gpbs.





Optimize Performance


The OFDMA feature allows the AP to assign different parts of the spectrum to different users, improving traffic coordination and rational spectrum usage.


AP



Power Efficiency


The Target Wake-up Time (TWT) features to coordinate transmission times from different sources automatically and devices to sleep during the non-transmission periods and extend the battery life of devices which connects with APs.


TWT



Hardened-grade for Outdoors


Z-COM SP250 designs for extreme temperatures and environments and includes IP67 waterproof and dustproof that can withstand harsh environments to be used in various weather conditions.


harsh environments




Ultra-Fast Wi-Fi 6 Data Rate

Simultaneous 574 Mbps on 2.4 GHz and 1200 Mbps on 5 GHz totals 1774 Mbps Wi-Fi 6 speeds.


High Capacity and Reliable Connections

Z-COM SP250 ensures large numbers of users have smooth and reliable network experiences in high-density business networks.


Centralized Management Optional

SP250 are allowed to configure and manage multiple APs in a centralized choices include zMEC (container-based) or Wireless LAN Controller solutions. Through Z-COM WLC that includes remote monitor, troubleshooting, and efficiency-optimized and enjoys simple management, configuration and monitoring of all access points. With zMEC, the platform for edge computing and PaaS, manages virtualized applications and import software by any x86 servers under different applications.



Multiple Applications

Allows to perform multiple functions, ideal for various scenarios like warehouses, shopping centers, airports and other high-density outdoor environments.




Specification

Standards

IEEE 802.11 a/b/g/n/ac/ax

Bandwidth

2.4GHz: 20/40 MHz
5GHz: 20/40/80 MHz

Frequency Bands and Operating Channels

Taiwan 2.412 – 2.462 GHz; 11 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.720 GHz ; 12 channels
5.745 – 5.825 GHz; 5 channels
US 2.412 – 2.462 GHz; 11 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.720 GHz ; 12 channels
5.745 – 5.825 GHz; 5 channels
EU 2.412 – 2.472 GHz; 13 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.700 GHz ; 11 channels
China 2.412 – 2.472 GHz; 13 channels
5.180 – 5.320 GHz; 8 channels
5.745 – 5.825 GHz; 5 channels
Japan 2.412 – 2.472 GHz; 13 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.720 GHz; 12 channels
India 2.412 – 2.472 GHz; 13 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.720 GHz ; 12 channels
5.745 – 5.865 GHz; 7 channels
Note *Operating Channel depends on configured regulatory domain.

Ethernet

1 x 10/100/1000M/2.5Gbps WAN Port
1 x 10/100/1000M LAN Port

Indicator

LED by SW control
Red(color)
-Steady: initializing
-Blinking: system upgrading (not touch or pull out power plug)
Green
- Steady: Connected to the Internet.
- Blinking: Can\\\'t connect to the Internet

Power

Power Consumption ≤ 25W
Power Supply WAN Port: PD Input (802.3bt)

Physical Characteristics

Dimensions 296 (L) × 92 (W) × 283 (H) mm
Weight 1.87kg
Mounting Type Pole

Package Contents

1 x SP250
1 x Mounting Bracket

Optional Accessories

SP-CBM5: Anti-theft Steel Rope Kit
SP-MKM5: Two-dimensional Mounting Kit
SP-WP-CM20: Waterproof Cable Gland
SP-48063-XX: 48V/30W PoE Injector

Radio Chains

2.4GHz 2×2:2
5GHz 2×2:2

Supported Data Rates

802.11ax: 4 to 1774 Mbps
802.11ac: 6.5 to 886 Mbps
802.11n: 6.5 to 600 Mbps
802.11a/g: 6 to 54 Mbps
802.11b: 1 to 11 Mbps

EIRP

2.4GHz 31dBm
5GHz 31dBm

PERFORMANCE TABLE

2.4GHZ TX TARGET POWER (PER CHAIN) MU HE40
MCS0:23dBm+/-2dBm
MCS11:16dBm+/-2dBm

MU VHT40
MCS9:20dBm+/-2dBm
5GHZ TX TARGET POWER (PER CHAIN) MU HE40
MCS0:23dBm+/-2dBm
MCS11:15dBm+/-2dBm

MU VHT40
MCS9:17dBm+/-2dBm
2.4GHZ RECEIVE SENSITIVITY HE20
MCS0:<-96dBm
MCS11:<-67dBm

HE40
MCS0:<-93dBm
MCS11:<-64dBm
5GHZ RECEIVE SENSITIVITY HE20
MCS0:<-95dBm
MCS11:<-67dBm

HE40
MCS0:<-93dBm
MCS11:<-64dBm

HE80
MCS0:<-90dBm
MCS11:<-59dBm

Supported Wireless LAN Controllers

- WS5G2 / WS7G2 /WS10G2
- zMEC

IP Rating

67

Environmental

Storage Temperature: -40 ~ 70 ℃
Humidity: 5 ~ 95%
Operating Temperature: -40 ~ 65 ℃
Humidity: 5 ~ 95% (non-condensing)

Compliance Standards

RoHS
IEEE standards:
IEEE 802.11a/b/g/n/ac/ax
IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards
Multimedia:
Wi-Fi multimedia (WMM)
Security:
Open System
802.1x
WPA-PSK/WPA-Enterprise WPA3-PSK
Extensible Authentication Protocol (EAP) types:
EAP-Transport Layer Security (TLS)
EAP-Tunneled TLS (TTLS)
Protected EAP (PEAP)
EAP-Subscriber Identity Module (SIM)
*Above partial functions should be configured by Z-COM Wireless LAN Controllers (WLC)
