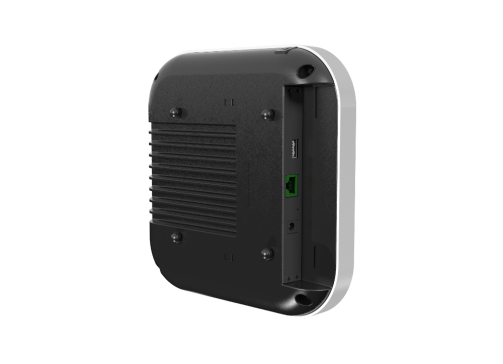

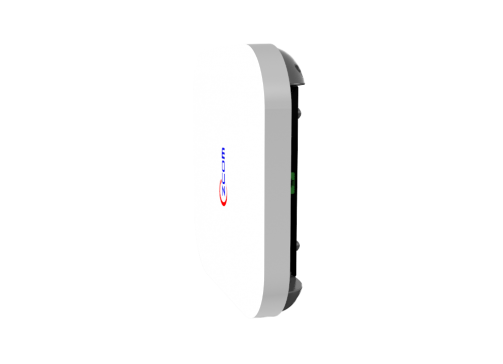

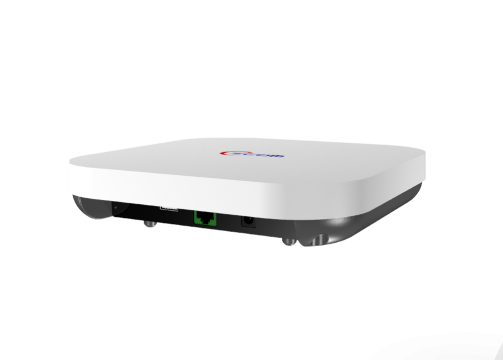

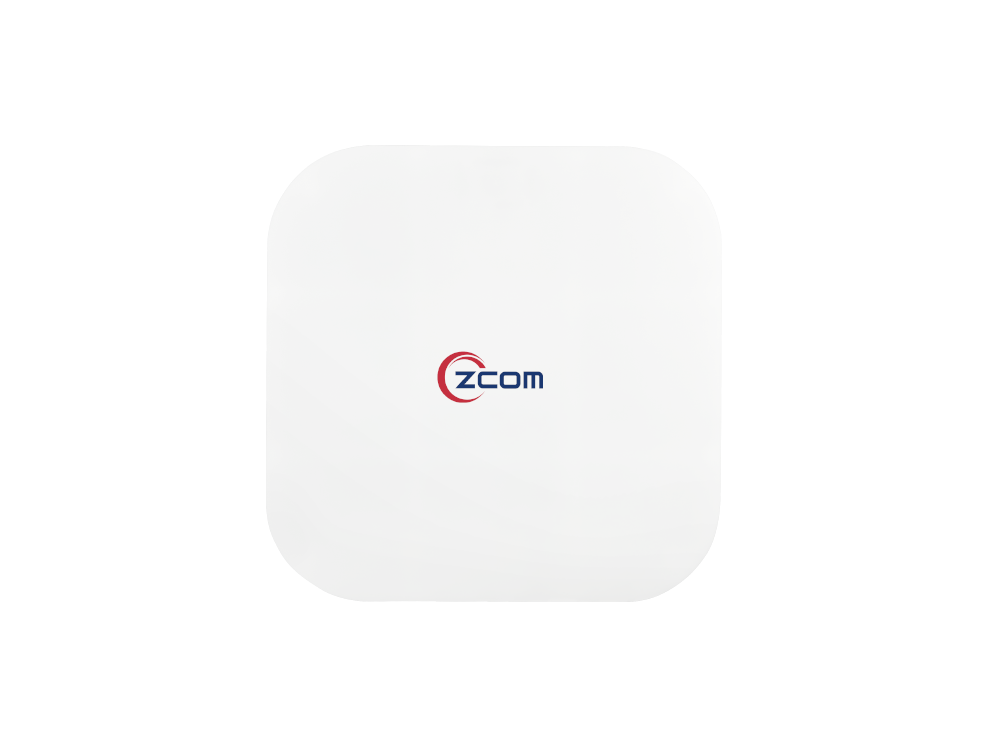

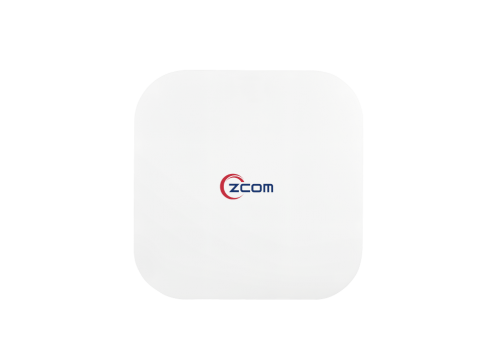

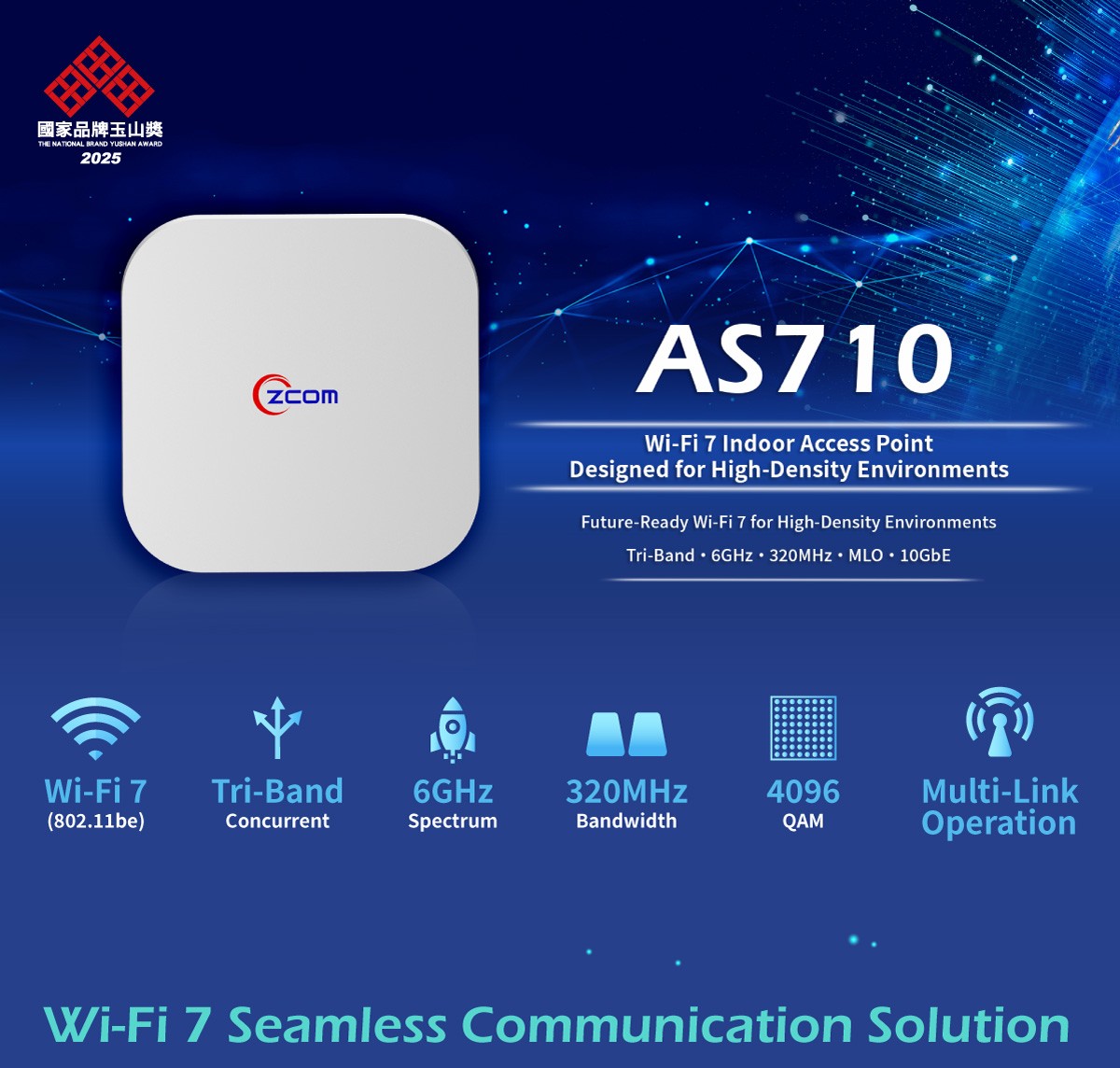

AS710

802.11be, 2x2 Tri-Band Concurrent Indoor Access Point

· Wi-Fi 7 (802.11be)

· Tri-Band Concurrent (2.4 / 5 / 6 GHz)

· 320 MHz ultra-wide bandwidth

· 4096-QAM

· MLO (Multi-Link Operation)

· MU-MIMO & OFDMA

· 10GbE high-speed wired connectivity

· Enterprise-grade security protection

Description

Specification

Standard compliance

IEEE802.3u MDI / MDIX 100/1000/2500/5000/10000 Base-T Ethernet
IEEE802.11a/b/g/n/ac/ax/be wireless LAN standard

Antenna Type

PIFA* 6 (2.4GHz、5GHz、6GHz) with aluminum ground plane

Power supply

Ethernet Port：PD Input (802.3at/25.5W)
DC Jack ：DC 12V/3A

Wi-Fi Power Amplifier

High power external PA power

Output Power(dBm) @ 25℃ (per chain ±2 dB)

2.4GHz 11be EHT40	MCS0 24dBm+/-2dB MCS13 20dBm+/-2dB All modes are measured via single chain. To be adjusted depending on regulations
5GHz 11be EHT160	MCS0 21dBm+/-2dB MCS13 17dBm+/-2dB All modes are measured via single chain. To be adjusted depending on regulations
6GHz 11be EHT320	MCS0 19dBm+/-2dB MCS13 16dBm+/-2dB All modes are measured via single chain. To be adjusted depending on regulations

Anti-static Grade

IEC61000-4-2(Criteria B)
Air: ±8Kv
Contact: ±4kV

Data Modulation Type

IEEE 802.11 a/b/g
• DSSS (DBPSK, DQPSK, CCK)
• OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
IEEE 802.11gn
• OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
IEEE 802.11ac
• OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
IEEE 802.11axg/axa
• OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM)
IEEE 802.11be
• OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM)

Standard Compliance

- IEEE 802.3u MDI/MDIX 10/100/1000/2,500/10,000 Mbps Base-T Ethernet
- IEEE802.11b/g/n/axg/beg wireless LAN standard
- IEEE802.11a/n/ac/axa/bea wireless LAN standard

Standard Protocol

- TCP/IP，IPv4 , IPv6
- CAPWAP

TAP Mode

AC Detection

- DHCP option 43，60
- DNS detection
- Static IP detection

802.11be

320M bandwidth：Support
4096-QAM：Support
MLO：Support
MU-MIMO：Support
OFDMA：Support

WLAN

SSIDs	- 2.4GHz 8 SSID - 5GHz 8 SSID
VAP	- 2.4GHz 8 VAP - 5GHz 8 VAP
VLAN	Support
Flow Control	Support By User/Throughput
Transmit Power Adjustment	Support
Data Rate Selection	Support
Time Sever	Support
HT Protection	Support
Short GI	Support
Channel Mode	Support

WLAN extension

RF adjustment ：Support
SSID hiding：Support
Mesh：Support

Layer 2 and Layer 3 features

IP address configuration：Static IP (Available only in Fat AP mode)、DHCP assigned IP (Option 43)
Native IPv6：Supported
ACL：IPv4、TCP/IP
Local forwarding：Local forwarding based on SSID and VLAN
Multicast：IGMP Snooping/MLD Snooping
DHCP Server/client/relay：Support

WLAN Security

Web Portal Authentication：Provided by AC

Notice

The information contained herein is for reference only. Our company reserves the right to modify specifications at any time. The actual product delivered and our company\'s internal technical standards shall take precedence over this document.

Datasheet Version

Q126

IEEE standards

802.11：Support IEEE 802.11a/b/g/n/ac/ac Wave 2/ax/be
Support IEEE 802.11k/v/r
802.3：Support 802.3bt

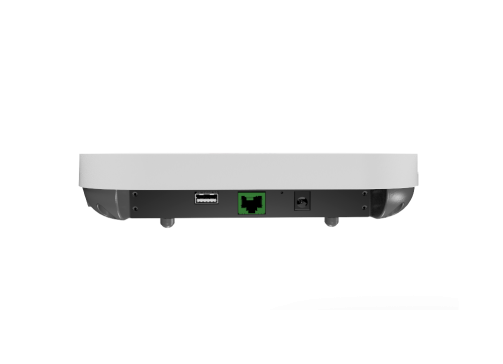

Interfaces

1 x RJ45 support 10/100/1000Mbps/2.5G/5G/10Gbps
1 x Reset Button
1 x DC Jack (12V)
1 x Key Lock
1 x Tri-color LED (RGB)
1 x USB 3.0 (type A)

Antenna Gain

2.4GHz: 4dBi Antenna
5GHz: 5dBi Antenna
6GHz: 6dBi Antenna

Power Consumption

≤25.5W

LED definition

Red light	Blinking-Booting/ FW Updating/ Reset to default
Green light (FAP Mode)	Blinking: Boot Completed (Wi-Fi not activated) steady on: Wi-Fi Activated
Blue light (TAP Mode)	Blinking or Steady on Connected to WLC OR NOT
Yellow light	Steady on-Reset Bottom Pressed

Sensitivity (PER <10%, per chain >= Spec; dB)

2.4GHz 11be EHT40	MCS0 -92dBm MCS11 -61dBm
5GHz 11be EHT160	MCS0 -85dBm MCS13 -56dBm
6GHz 11be EHT320	MCS0 -82dBm MCS13 -46dBm

Supported Data rate

- 802.11a: 6/9/12/18/24/36/48/54 Mbps & Auto fallback
- 802.11b: 1/2/5.5/11 Mbps & Auto fallback
- 802.11g: 6/9/12/18/24/36/48/54 Mbps & Auto fallback
- 802.11n: up to 300Mbps
- 802.11ac: up to 866.7Mbps
- 802.11axg(2.4GHz): up to 574Mbps (40MHz)
- 802.11axa(5GHz): up to 1200Mbps (80MHz )
- 802.11be(2.4GHz): up to 688Mbps (40MHz)
- 802.11be(5GHz): up to 2882Mbps (160MHz)
- 802.11be(6GHz): up to 5765Mbps (320MHz)

Operating Frequency & Channels

IEEE 802.11b/g/gn/axg/beg 20MHz/40MHz ISM Band
• USA (FCC): 2.412GHz~2.462GHz (11 channels)
• Taiwan (NCC) : 2.412GHz~2.462GHz (11 channels)
• Europe (ETSI): 2.412GHz~2.472GHz (13 channels)
• Japan(ARIB) : 2.412GHz~2.472GHz (13 channels)
• India: 2.412GHz – 2.472 GHz (13 channels)
• China: 2.412GHz – 2.472 GHz (13 channels)
IEEE 802.11a/an/axa/be5G 20MHz/40MHz/80MHz/160MHz ISM Band
• USA (FCC): 5.18GHz~5.32GHz (8 channels); 5.5GHz~5.825GHz (12 channels); 5.745GHz~5.885GHz (8 channels)
• Taiwan (NCC): 5.18GHz~5.32GHz (8 channels); 5.50GHz~5.72GHz (12 channels); 5.745GHz~5.825GHz (5 channels)
• Europe (ETSI): 5.18GHz~5.32GHz (8 channels); 5.50GHz~5.72GHz (12 channels)
• Japan (ARIB): 5.18GHz~5.32GHz (8 channels); 5.50GHz~5.72GHz (12 channels)
• India : 5.18GHz~5.32GHz (8 channels); 5.50GHz ~5.72GHz (12 channels); 5.745GHz~5.865GHz (7 channels)
• China: 5.18GHz – 5.32GHz (8 channels); 5.745GHz – 5.825GHz (5 channels)
IEEE 802.11axa/be6G 20MHz/40MHz/80MHz/160MHz/320MHz ISM Band
• USA (FCC): 5.955GHz~7.115GHz (59 channels)
• Taiwan (NCC): 5.955GHz~6.415GHz (24 channels)
• Europe (ETSI): 5.955GHz~6.415GHz (24 channels)
• Japan (ARIB): 5.955GHz~6.415GHz (24 channels)
• India : 5.955 GHz ~ 6.415 GHz
• China: not available

Transmit Beamforming

Supported

Operating Mode

- Thin AP
- Fat AP、Wireless Backhaul(WDS)、CPE

FAP Mode

DHCP Server	Support
Traffic Statistics	Support

802.11ax

MU-MIMO：Support
OFDMA：Support

WLAN basics

Maximum number of clients per radio	256+
Virtual APs	16
Open system/shared key authentication	Support
Concurrent login of WPA, WPA2, WPA3 and Pre-RSNA u	Support
802.11k and 802.11v smart roaming	Support
802.11r fast transition roaming	Support
Hide SSID	Support
Automatic Channel	Support
Automatic Power	Support
A-MPDU	Support
A-MSDU	Support
DFS	Support

Wireless Security

Encryption：WPA-PSK/WPA2-PSK、WPA2、WPA3
802.11i：Support
Authentication：802.1X authentication, MAC authentication, PSK authentication, Portal authentication,
User isolation：Layer 2 user isolation、 SSID-based user isolation
Forwarding security：Packet filtering、 MAC address filtering
SSID and VLAN binding：Support
Rogue device detection and countermeasure：Support

QoS

802.11e：Wi-Fi Multimedia (WMM)
QoS policy mapping：SSID/VLAN and QoS policy mapping
Bandwidth control：
By VAP
By MAC
By VLAN
By Radius
Load balancing：Traffic-based load balancing
Band navigation(5G priority)：Supported
Multicast optimization (IPv4)：Supported

Management

CLI：Support SSH
Web UI Management：Support
Mode：Standalone
GUI：Support WEB management via HTTP/HTTPS*
Reset to default：Support SW default
Local debugging：Support SSH、 IPV4、IPV6*

Diagnosis Capabilities

User List：Support
Adjacent AP Scan：Support

Reset

Reset to default：Support
Watchdog：Support
