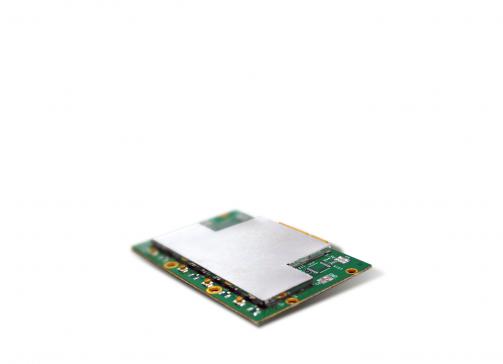

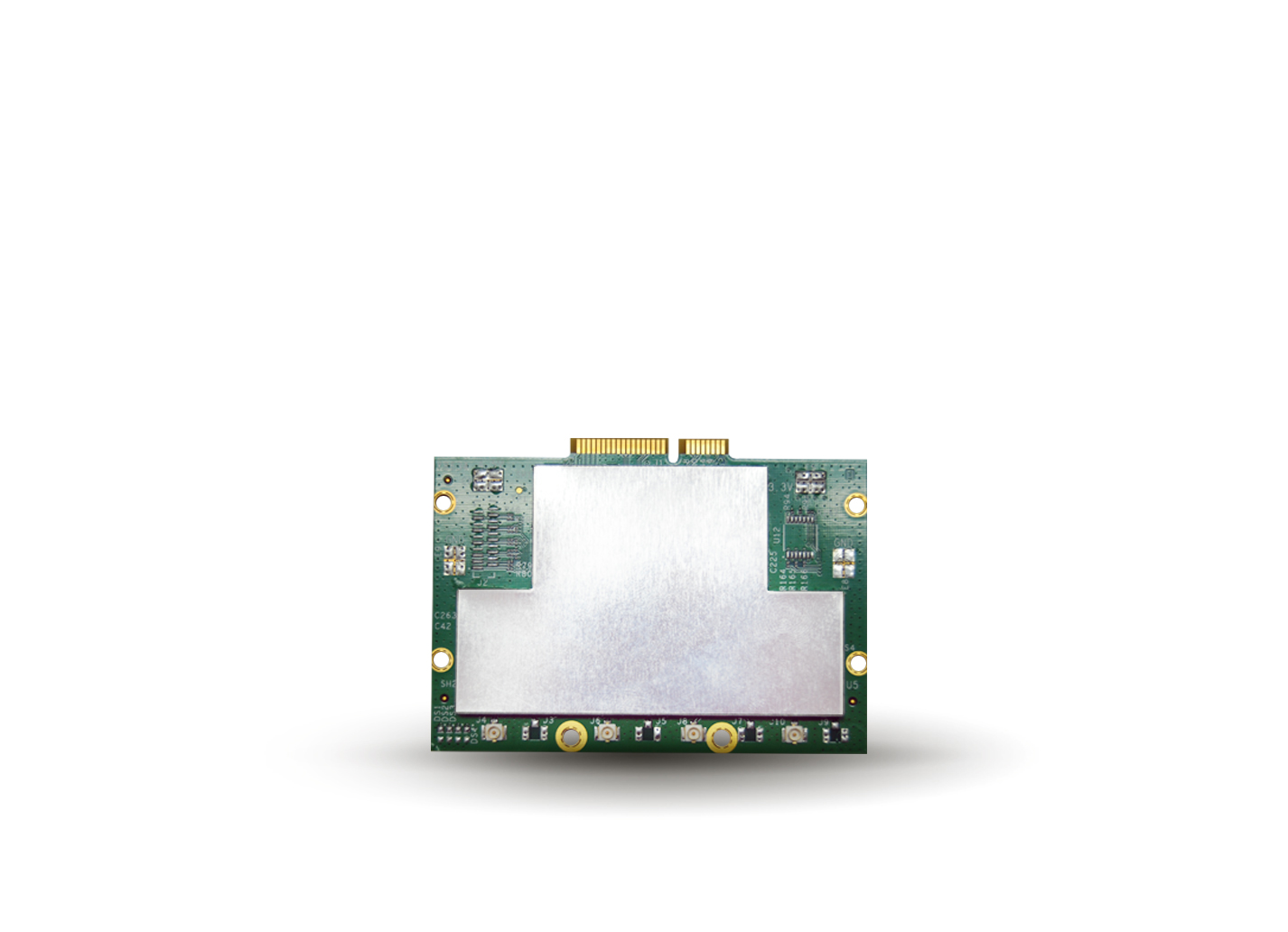

AC-923

802.11gn 4X4 單頻 mPCIe

  • 支援IEEE 802.11 b/g/n 4×4 mPCIe 規格

  • 支援2.4 GHz 單頻

  • 支援4 x 4天線組合

  • mPCIe介面

產品特色

AC-923是一款可支援IEEE 802.11 b/g/n 4×4的內嵌型mPCIe無線網卡,可提供優異的傳輸效能。

HARDWARE

Standards IEEE 802.11b/g/n
Host Interface mini PCIe
Operating Voltage DC 3.3V &5V ± 5%
Operating Frequency FCC: 2.412 GHz – 2.462 GHz
CE: 2.412 GHz – 2.472 GHz
Data Modulation Type IEEE 802.11 b/g:
DSSS (DBPSK, DQPSK, CCK)
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
IEEE 802.11n
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
256-QAM
Supported Data Rates IEEE 802.11b/g/n
11b: 20 dBm
11g: 20 dBm
11n: 22 dBm
Receive Sensitivity IEEE 802.11g/n
11g: -91 dBm @ 6Mbps
11n: -92 dBm @ HT20
Antenna Connector 4 U.FL

ENVIRONMENT

Operating Temperature: -30 – 60 ℃
Humidity: 90% RH
(non-condensing)
Storage Temperature: -40 – 70 ℃
Humidity: 10 – 90% RH

DIMENSIONS & WEIGHT

Dimensions 73.66 (L) × 47.6 (D) mm
Weight ≦15g
