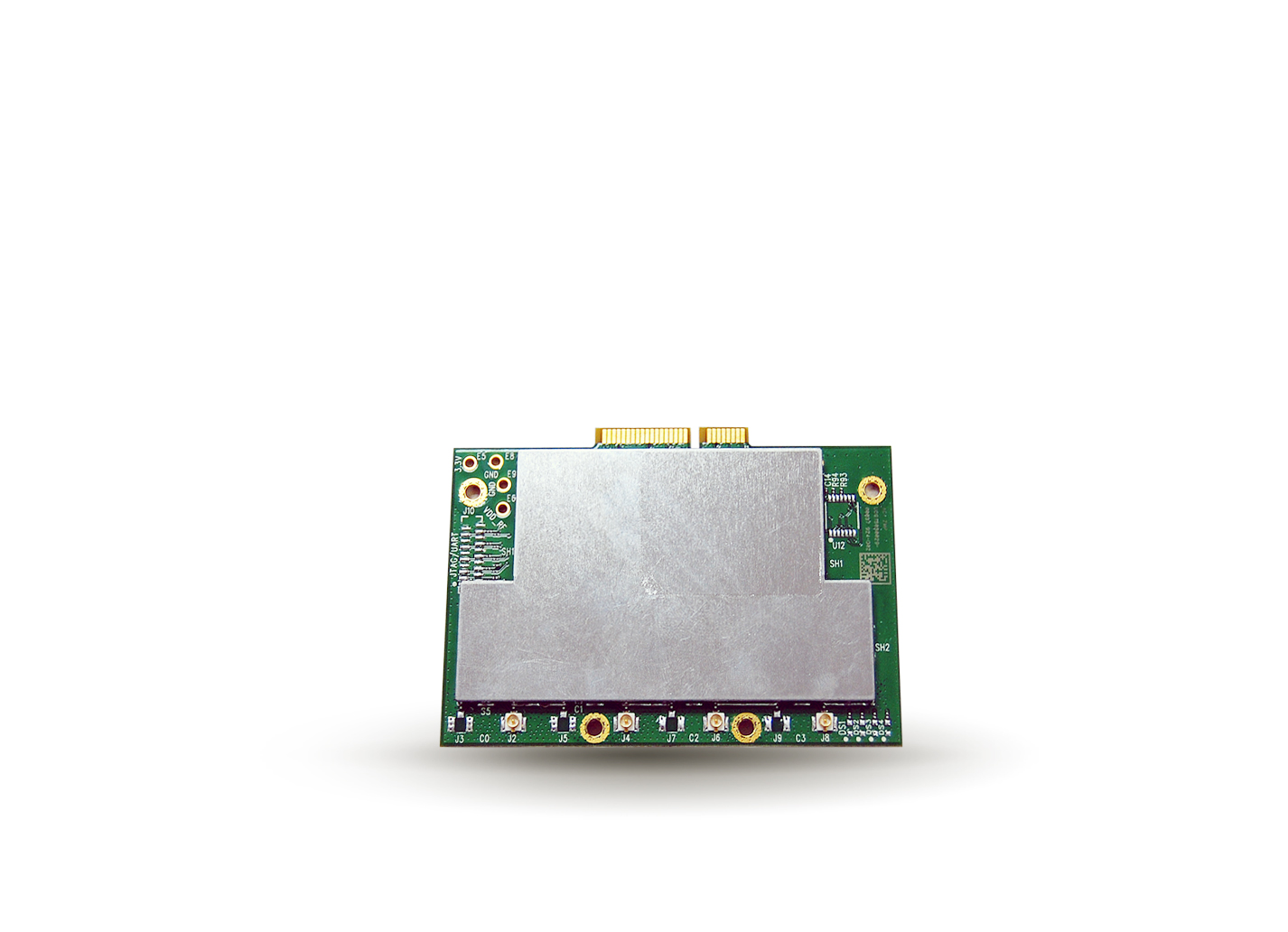

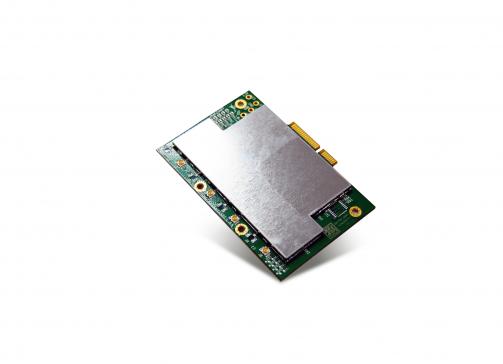

AC-924無線網卡

802.11 a/an/ac 4X4 單頻 mPCIe

  • 支援802.11 a/an/ac 4x4 mPCIe無線模組

  • 符合IEEE 802.11ac Wave2 標準

  • 支援5GHz 單頻

  • 支援4 x 4天線組合

  • mPCIe介面

產品特色

AC-924是一款可支援IEEE 802.11an/ac 4×4 mPCIe的內嵌型無線網卡,可提供優異的傳輸效能。

HARDWARE

Standards IEEE 802.11a/an/ac
Host Interface mini PCIe
Operating Voltage DC 3.3V &5V ± 5%
Operating Frequency 5150-5250 MHz,
5250-5350 MHz,
5470-5725 MHz,
5725-5850 MHz
Data Modulation Type IEEE 802.11a OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
IEEE 802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
IEEE 802.11ac OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
Supported Data Rates IEEE 802.11a/an/ac
11a: 20dBm
11n: 20 dBm
11ac: 22 dBm@VHT20/40/80
Receive Sensitivity IEEE 802.11a/n/ac
11a: -91 dBm @ 6Mbps
11n: -92 dBm @ HT20
11ac: -91dBm @VHT20
Antenna Connector 4 U.FL

ENVIRONMENT

Operating Temperature: -30 – 60 ℃
Humidity: 90% RH
(non-condensing)
Storage Temperature: -40 – 70 ℃
Humidity: 10 – 90% RH

DIMENSIONS & WEIGHT

Dimensions 75.06 (L) × 47.6 (D) mm
Weight ≦15g

Safety/Country Approval

CE
EN301893 V1.7.1
EN301489 -1/-17
EN55022

RoHS/REACH Compliance
