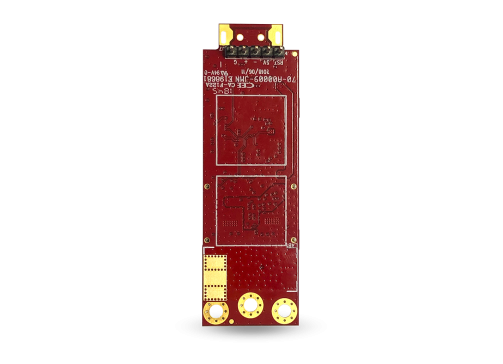

AC-720M

802.11ac 雙頻 USB

  • 符合IEEE 802.11ac Wave1 標準

  • 支援2.4/5GHz 雙頻

  • 支援1 x 1天線組合

  • USB介面

產品特色

AC-720M是一款可支援IEEE 802.11an/ac的內嵌型USB無線模組,提供優異的傳輸效能。

HARDWARE

Standards IEEE 802.11an/ac
IEEE 802.11b/g/n
Host Interface USB 2.0
Operating Voltage DC 5V±5%
Power Consumption TX : ≦750mA (5V)
RX : ≦250mA(5V)
Supported Data Rates 11b: 22 dBm @ 11Mbps
11g: 22 dBm @ 6Mbps
11n: 22 dBm @ HT20/40
11a: 20 dBm @6Mbps
11ac: 20 dBm @VHT20/40/80
Receive Sensitivity 11b: ‐88dBm
11a/g: ‐88dBm
11n: ‐88dBm
11ac: -88dBm
Modulation IEEE 802.11b: DSSS (DBPSK, DQPSK, CCK)
IEEE 802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
IEEE 802.11an/g/n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
IEEE 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
Antenna Connector 1 U.FL, SMA (Option)
Indicator ON: power on
OFF: power off

ENVIRONMENT

Operating Temperature: -30 – 75 ℃
Humidity: <90% RH
(non-condensing)
Storage Temperature: -30 – 80 ℃
Humidity: 10 – 90% RH

DIMENSIONS & WEIGHT

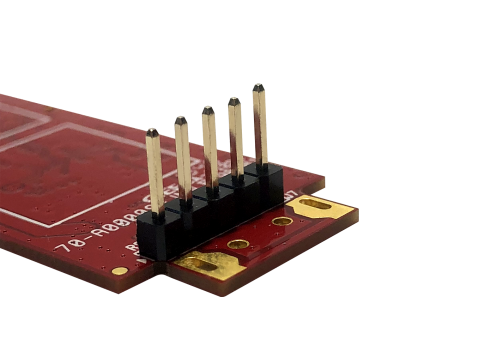

Dimensions 65 (L) x 20.9 (W) x 11.60 (H) mm with USB PIN header
Weight ≦10g
