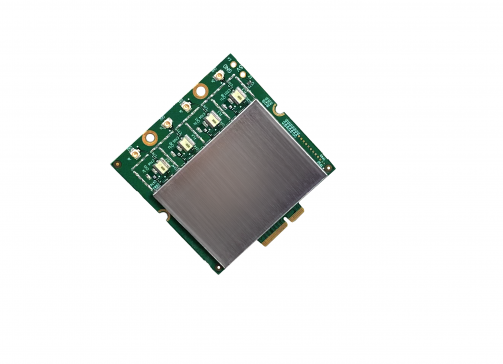

AX-930 WIRELESS MODULE MODEL
WIFI 6 (802.11ax) 4X4 MU-MIMO 5GHz WIRELESS MODULE MODEL
5GHz, max 21dBm per chain
Dynamic Frequency Selection(DFS)
Single Band at 5GHz WiFi 6（802.11ax）- Frequency Range 5.180-5.850GHz
Qualcomm Atheros QCN 9074
M.2 E Key Interface
4x4:4 4 spatial streams (4SS)
PCI Express 3.0 Interface
Description
AX930 is an 802.11ax Wi-Fi 6 PCIe for Enterprise Access Points and Campus deployments.
Based on Qualcomm® 802.11ax technology, a highly integrated wireless local area network (WLAN) system-on-chip (SoC), AX930 supports 5GHz for IEEE802.11ax/ac/an applications. AX930 supports spatial streams (4x4) in MU-MIMO mode that speeds up the transmission performance and efficiency. Besides, AX930 supports DFS (Dynamic Frequency Selection).
The driver is available now.It runs only on Qualcomm's Wi-Fi6 platform, in particular, IP807x and IPQ60xx CPU.
Specification
| Standards | IEEE 802.11ax |
| Host Interface | PCI Express 3.0 interface, M.2 E-key |
| Operating Voltage | 3.3V/5V |
| Operating Frequency | 5G: 5.180GHz~5.850GHz |
| Modulation | 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) 802.11ax: OFDMA (BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM) |
| Output Power | 802.11ax: Max. 21dBm (per chain) |
| Power Consumption | ≦15W |
| Receive Sensitivity | 11ax : HE20 MCS0 <-89dBm / MCS11 <-64dBm HE40 MCS0 <-89dBm / MCS11 <-60dBm HE80 MCS0 <-86dBm / MCS11 <-58dBm |
| Antenna Connector | 4x U.FL Connectors |
| Operating | Temperature: -20°C to 70°C Humidity: 95% (non-condensing) |
| Storage | Temperature: -40°C to 90°C Humidity: 90% (non-condensing) |
| Weight | 20g |
| Dimensions | 60 (L) x 57 (W) x 4.1 (H) mm (Tolerance±0.15mm) |
| RoHS/REACH Compliance |
