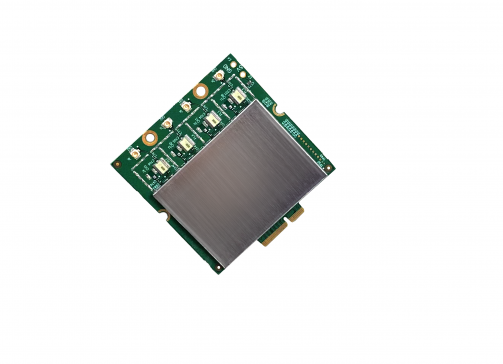

AX-931 WIRELESS MODULE MODEL

4X4 MU-MIMO 6GHz Wi-Fi 6E WIRELESS MODULE MODEL

  • 6GHz, max 21dBm per chain

  • Single Band 6GHz WiFi 6E 802.11ax- Frequency Range 6.105GHz to 7.125GHz

  • Applications: Point to Point(PTP) AR & VR

  • Qualcomm Atheros QCN 9074

  • M.2 E Key Interface

  • 4x4:4 4 spatial streams (4SS)

  • PCI Express 3.0 Interface

Description

AX931 is an 802.11ax Wi-Fi 6E PCIe for Enterprise Access Points and Campus deployments.


Based on Qualcomm® 802.11ax technology, a highly integrated wireless local area network (WLAN) system-on-chip (SoC), AX931 supports 6 GHz for IEEE802.11ax/ac/an applications. AX931 supports spatial streams (4x4) in MU-MIMO mode. AX931 accesses the Wi-Fi 6E channels, including 160MHz that speeds up the transmission performance and efficiency, and is ideal for PTP (Point-to-Point), AR & VR applications.



The driver is available now. It runs only on Qualcomm's Wi-Fi6 platform, in particular, IP807x and IPQ60xx CPU.


pin definition_6E PCIe





Specification

Hardware

Standards IEEE 802.11ax
Host Interface PCI Express 3.0 interface, M.2 E-key
Operating Voltage 3.3V/5V
Operating Frequency 6.105GHz~7.125GHz
Modulation 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
802.11ax: OFDMA (BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM)
Output Power 802.11ax: Max. 21dBm (per chain)
Power Consumption ≦15W
Receive Sensitivity 802.11ax
HE20 MCS0 <-89dBm / MCS11 <-64dBm
HE40 MCS0 <-89dBm / MCS11 <-60dBm
HE80 MCS0 <-86dBm / MCS11 <-58dBm
Antenna Connector 4x U.FL Connectors

Environmental

Operating Temperature: -20°C to 70°C
Humidity: 95%
(non-condensing)
Storage Temperature:  -40°C to 90°C
Humidity: 90%
(non-condensing)

Physical Characteristics

Weight 20g
Dimensions 60 (L) x 57 (W) x 4.1 (H) mm (Tolerance±0.15mm)

Safety Approval

RoHS/REACH Compliance
